ALC Sensor, Door Lock Relay K135 And Multifunction Relay K134

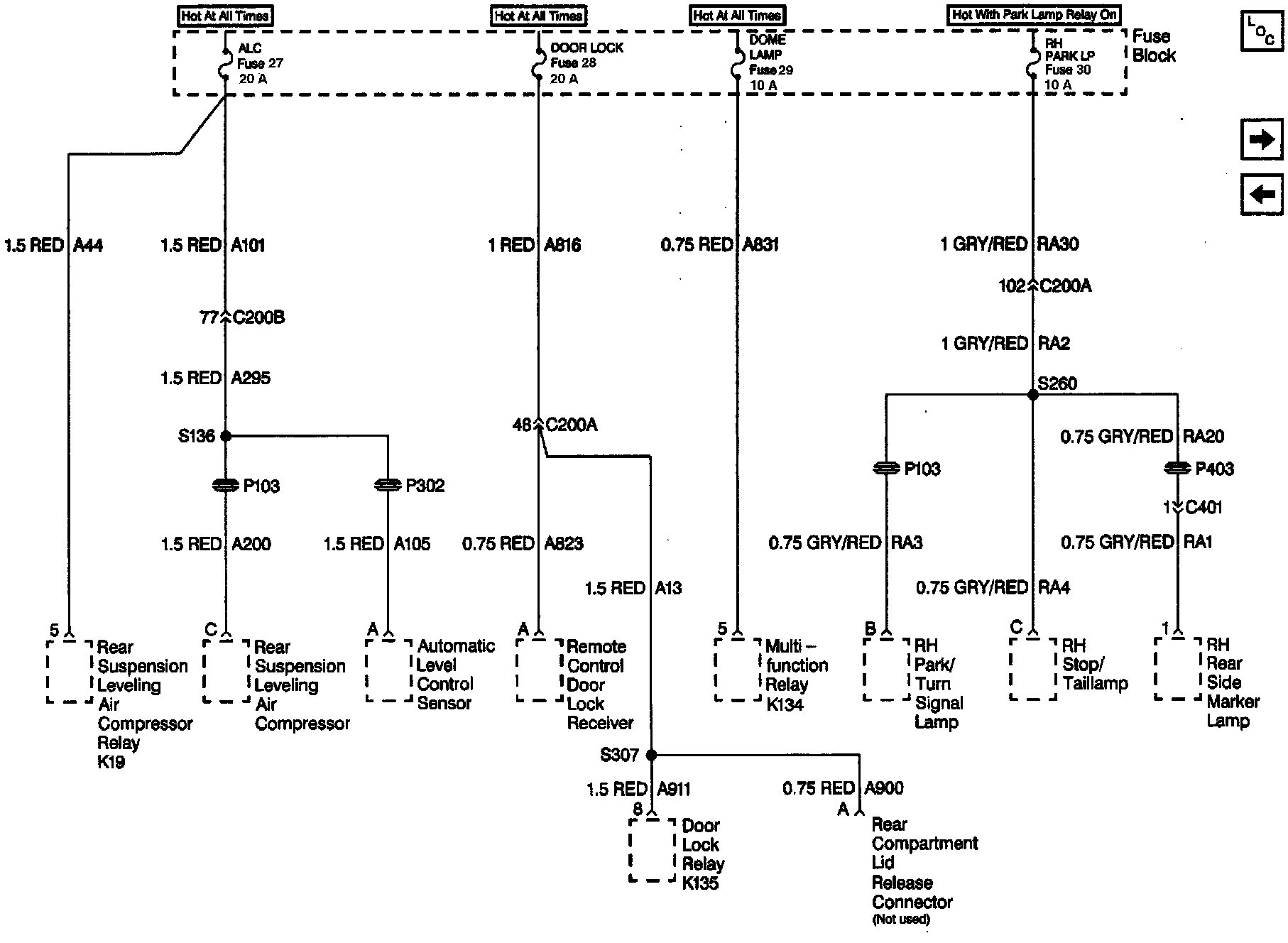

Fuse Block Details Schematics: ALC Sensor, Door Lock Relay K135 And Multifunction Relay K134:
