LH And RH Outside Rear View Mirror, DLC And Gauge Cluster
LH And RH Outside Rear View Mirror, DLC And Gauge Cluster

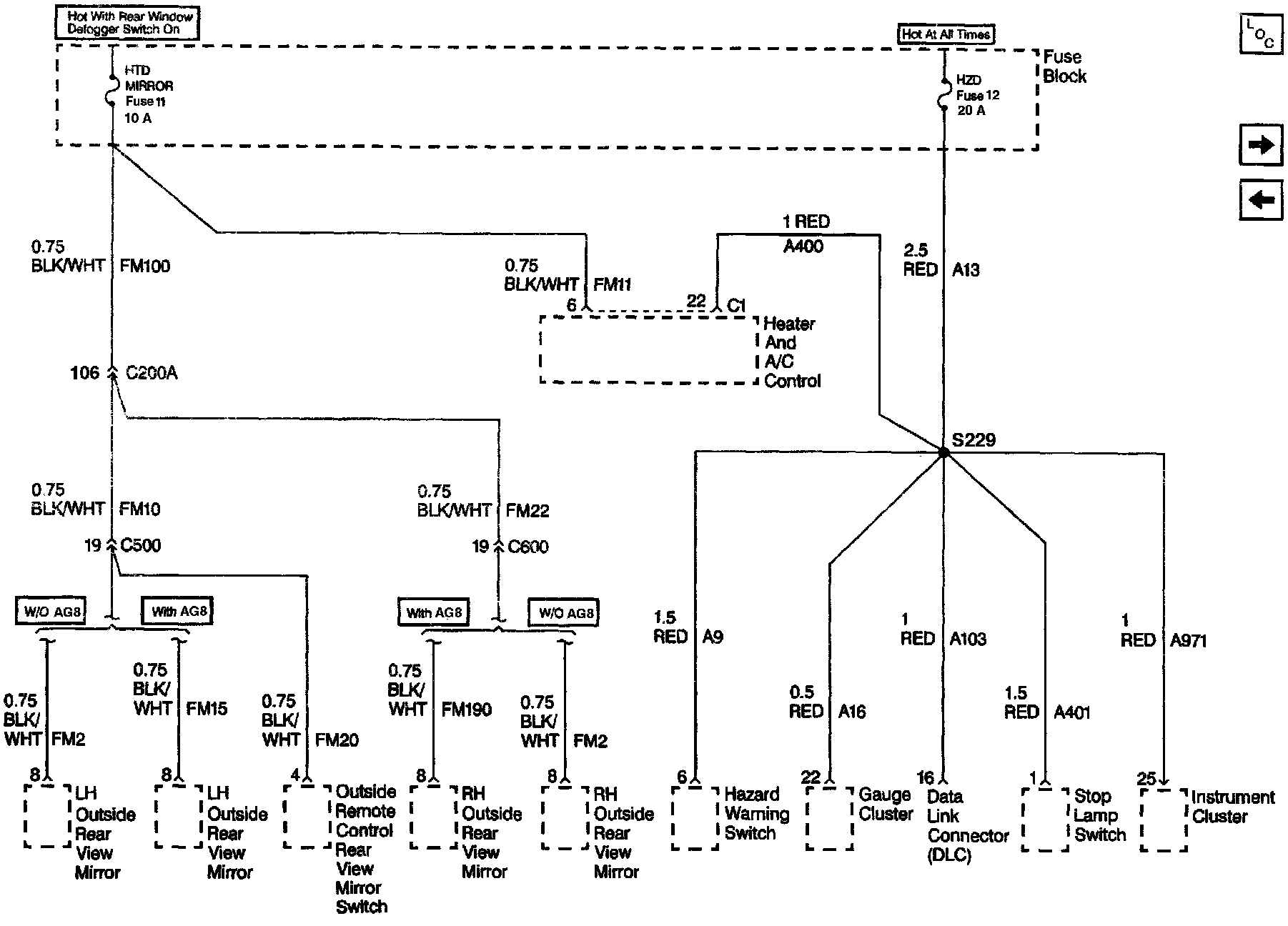

Fuse Block Details Schematics: LH And RH Outside Rear View Mirror, DLC And Gauge Cluster:
