Heater Switches, Cell Phone, WSW Nozzles & Heater & A/C Control
Heater Switches, Cell Phone, WSW Nozzles & Heater & A/C Control

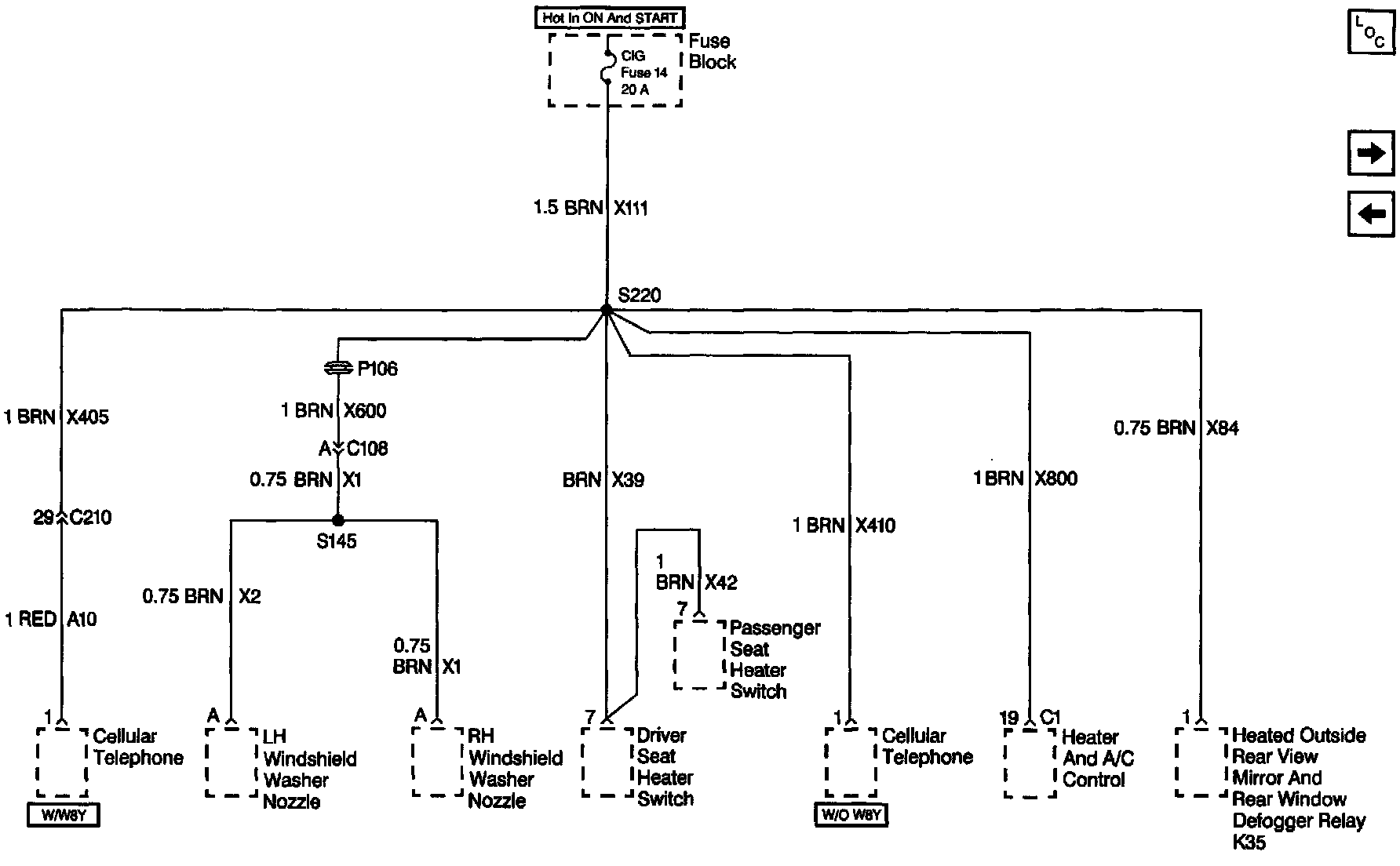

Fuse Block Details Schematics: Heater Switches, Cell Phone, WSW Nozzles and Heater And A/C Control:
