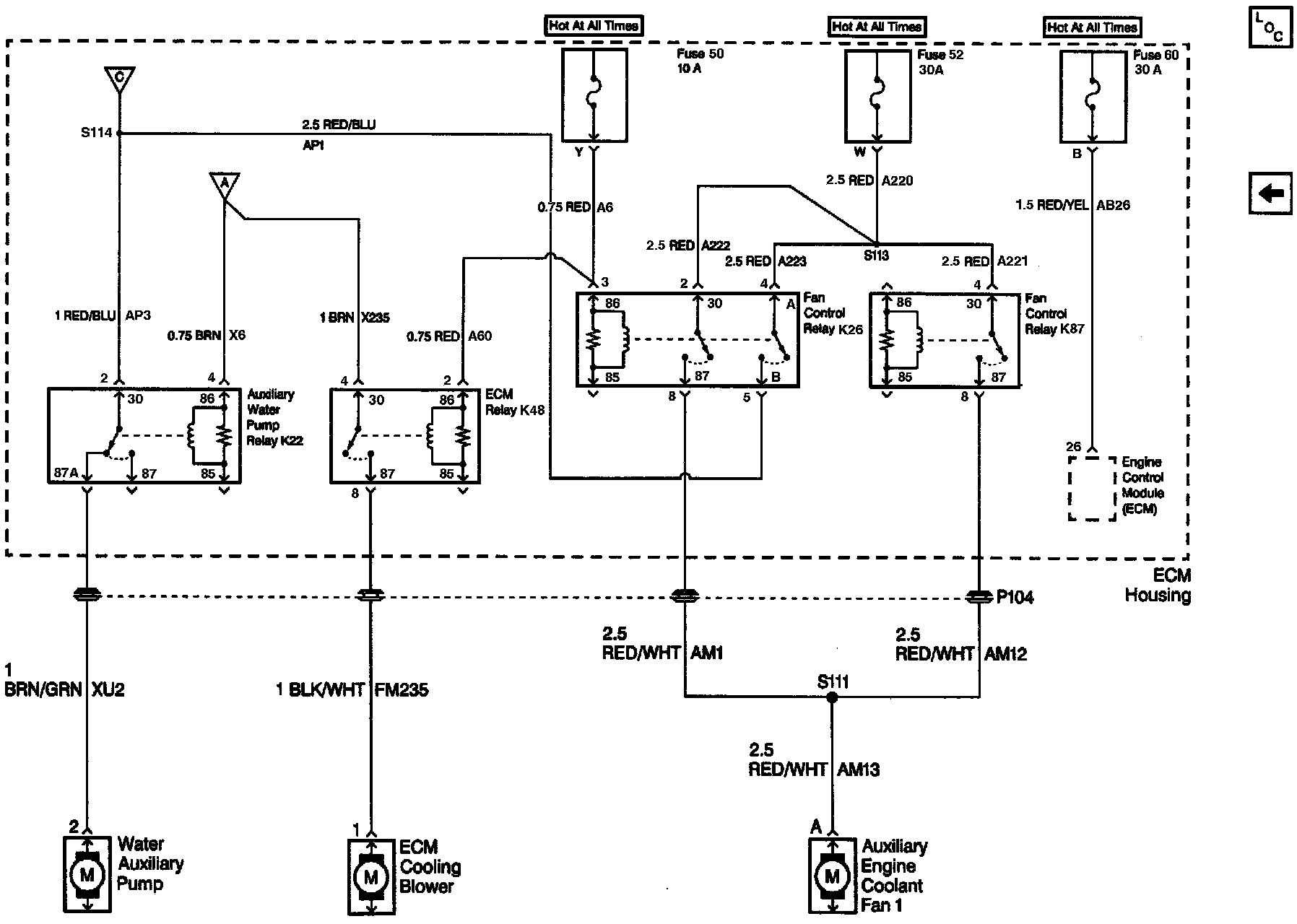

ECM Housing, ECM Cooling Blower And Water Auxiliary Pump

Fuse Block Details Schematics: ECM Housing, ECM Cooling Blower And Water Auxiliary Pump:
