BCM, Lifting Magnet, Sun Roof Actuator And Gauge Cluster
BCM, Lifting Magnet, Sun Roof Actuator And Gauge Cluster

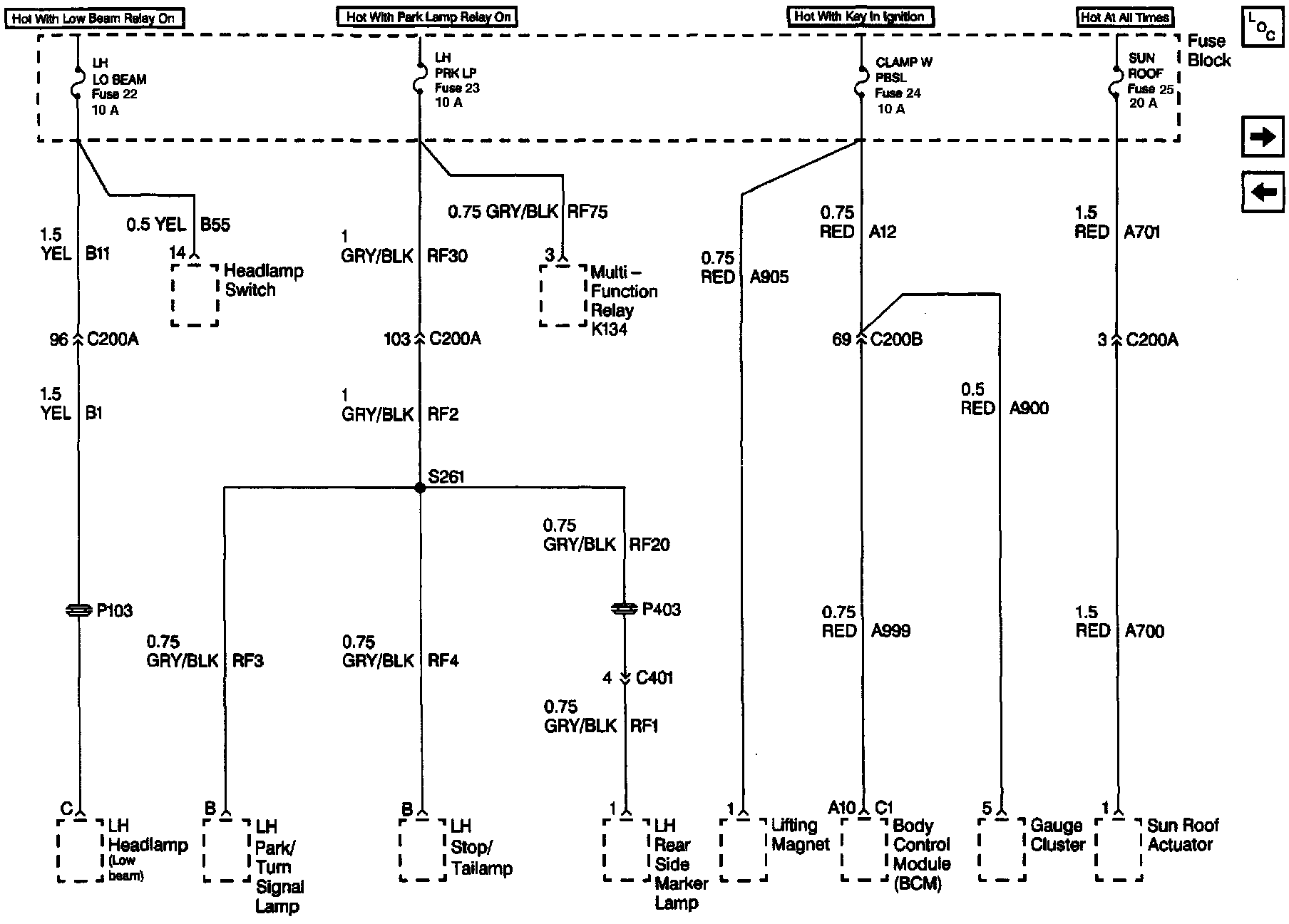

Fuse Block Details Schematics: BCM, Lifting Magnet, Sun Roof Actuator And Gauge Cluster:
