Relays, ECM Cooling Blower And Electric Cooling Fan

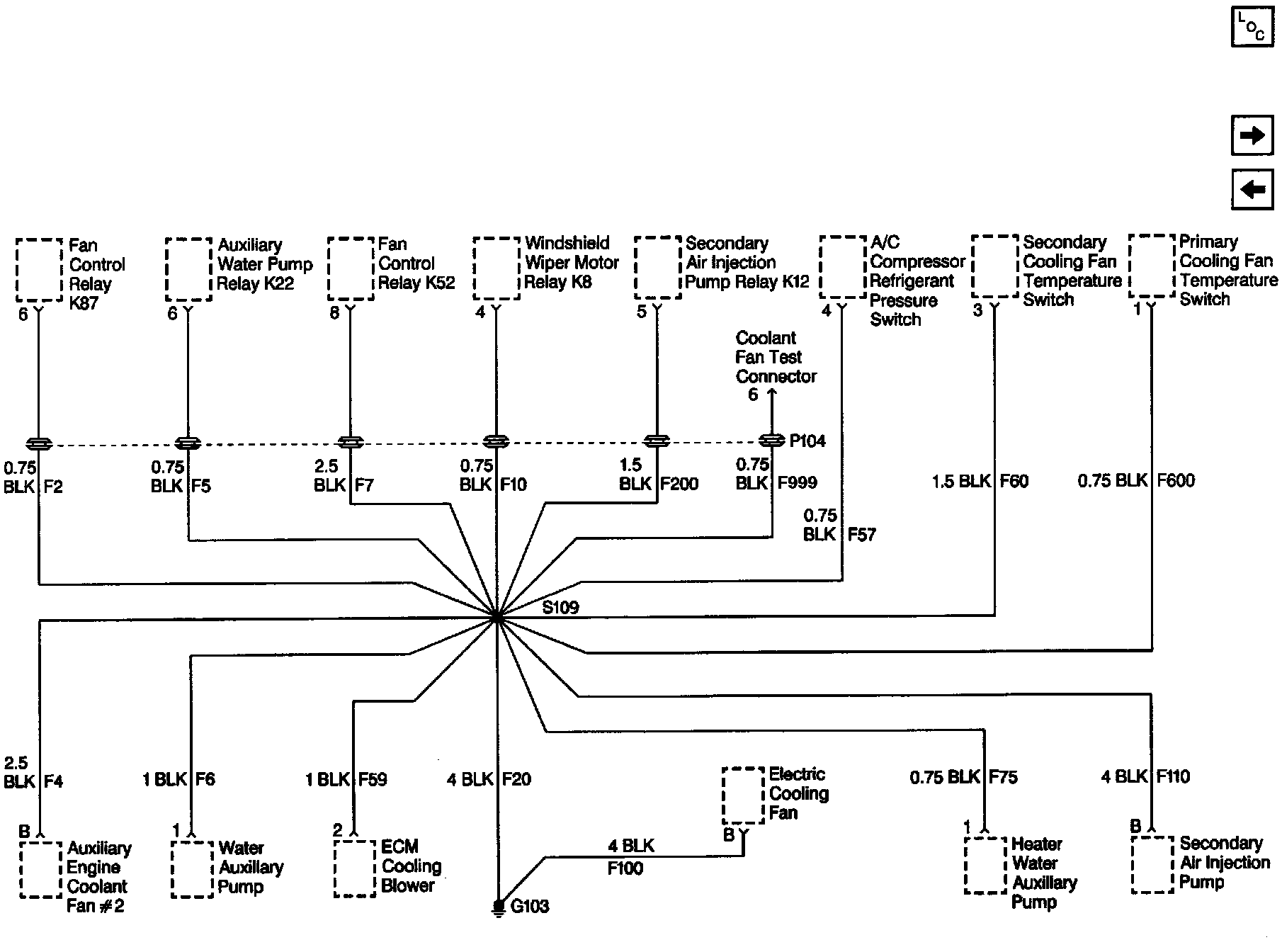

Ground Distribution Schematics: Relays, ECM Cooling Blower And Electric Cooling Fan:
