Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> Gauge Cluster, Horn Relay K63 And Headlamp Switch

Gauge Cluster, Horn Relay K63 And Headlamp Switch

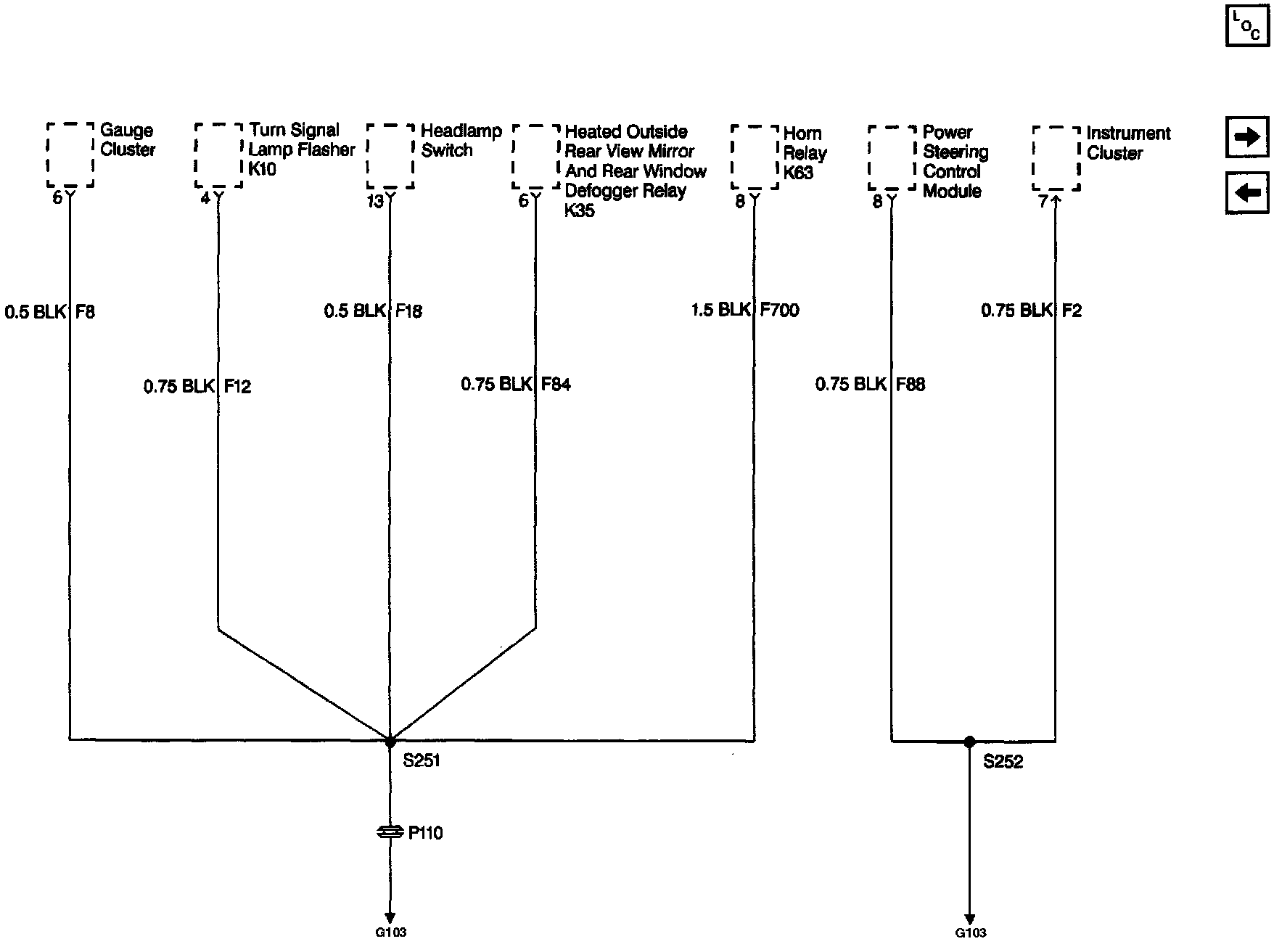

Ground Distribution Schematics: Gauge Cluster, Horn Relay K63 And Headlamp Switch:
