DLC, Traction Control Switch And Engine Oil Level Sensor
DLC, Traction Control Switch And Engine Oil Level Sensor

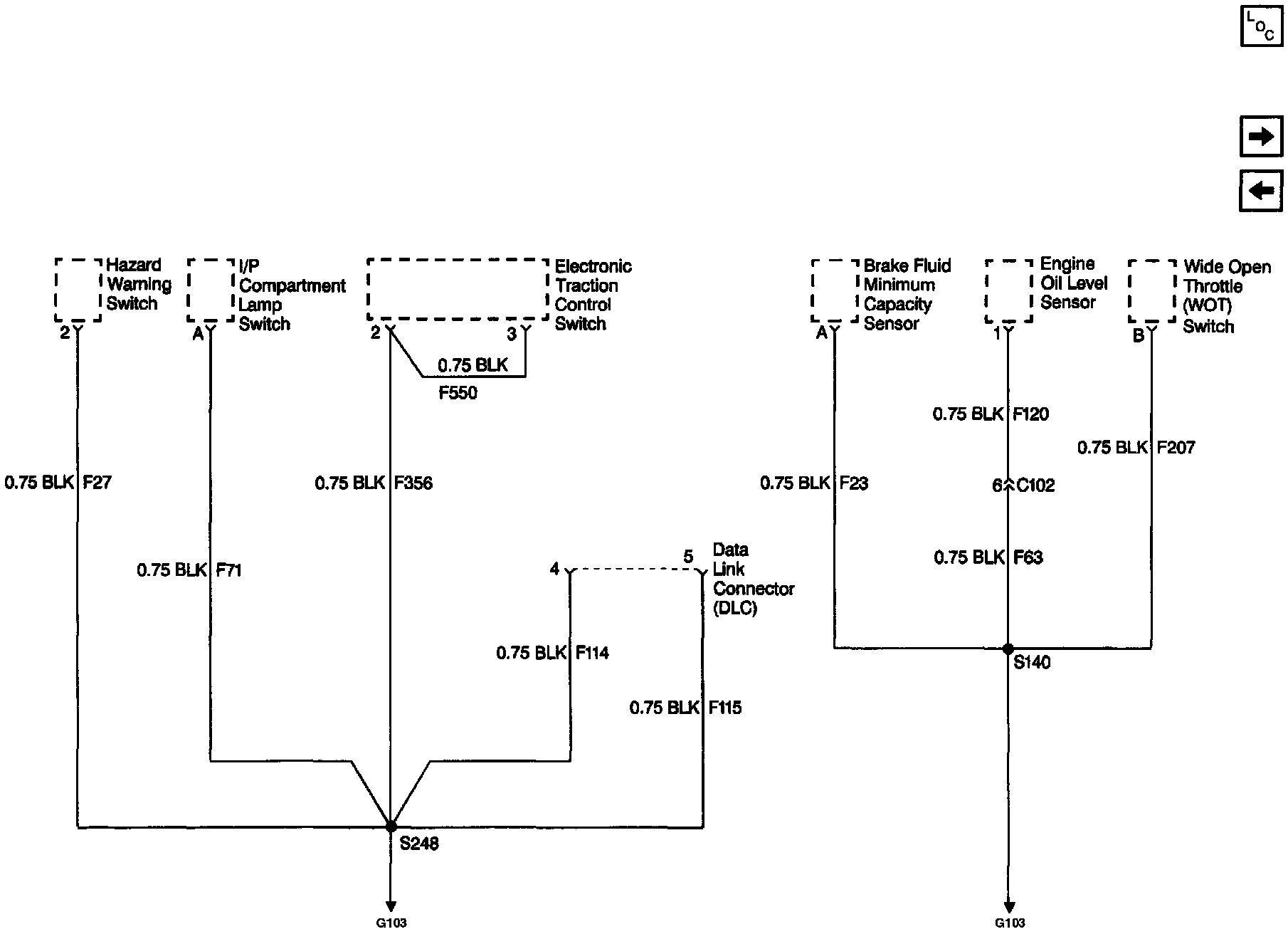

Ground Distribution Schematics: DLC, Traction Control Switch And Engine Oil Level Sensor:
