Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> Battery, ECM and Mass Air Flow Sensor

Battery, ECM and Mass Air Flow Sensor

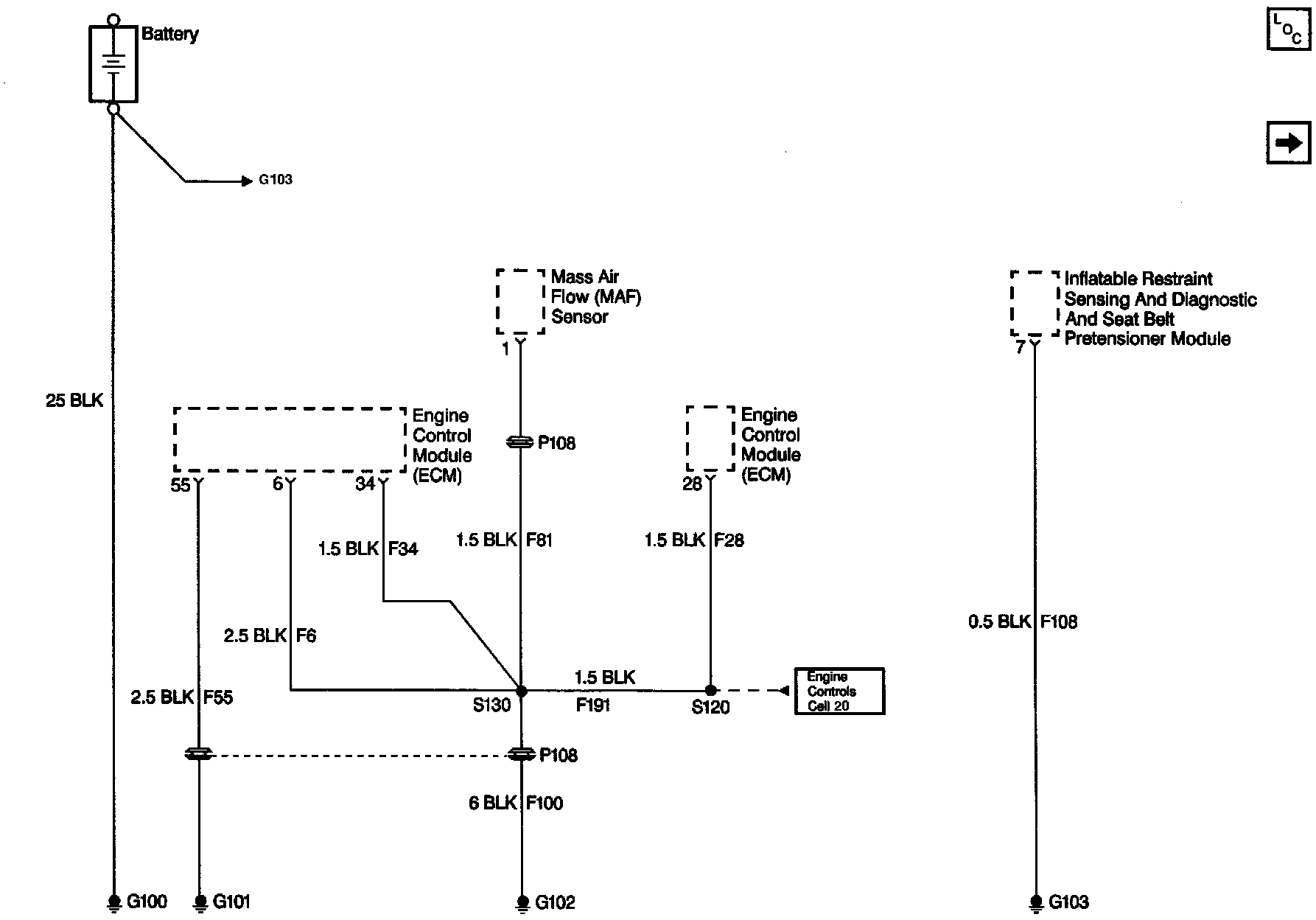

Ground Distribution Schematics: Battery, ECM And Mass Air Flow Sensor:
