BCM, Sun Roof Actuator, BCM, RCDLR And Courtesy Lamps
BCM, Sun Roof Actuator, BCM, RCDLR And Courtesy Lamps

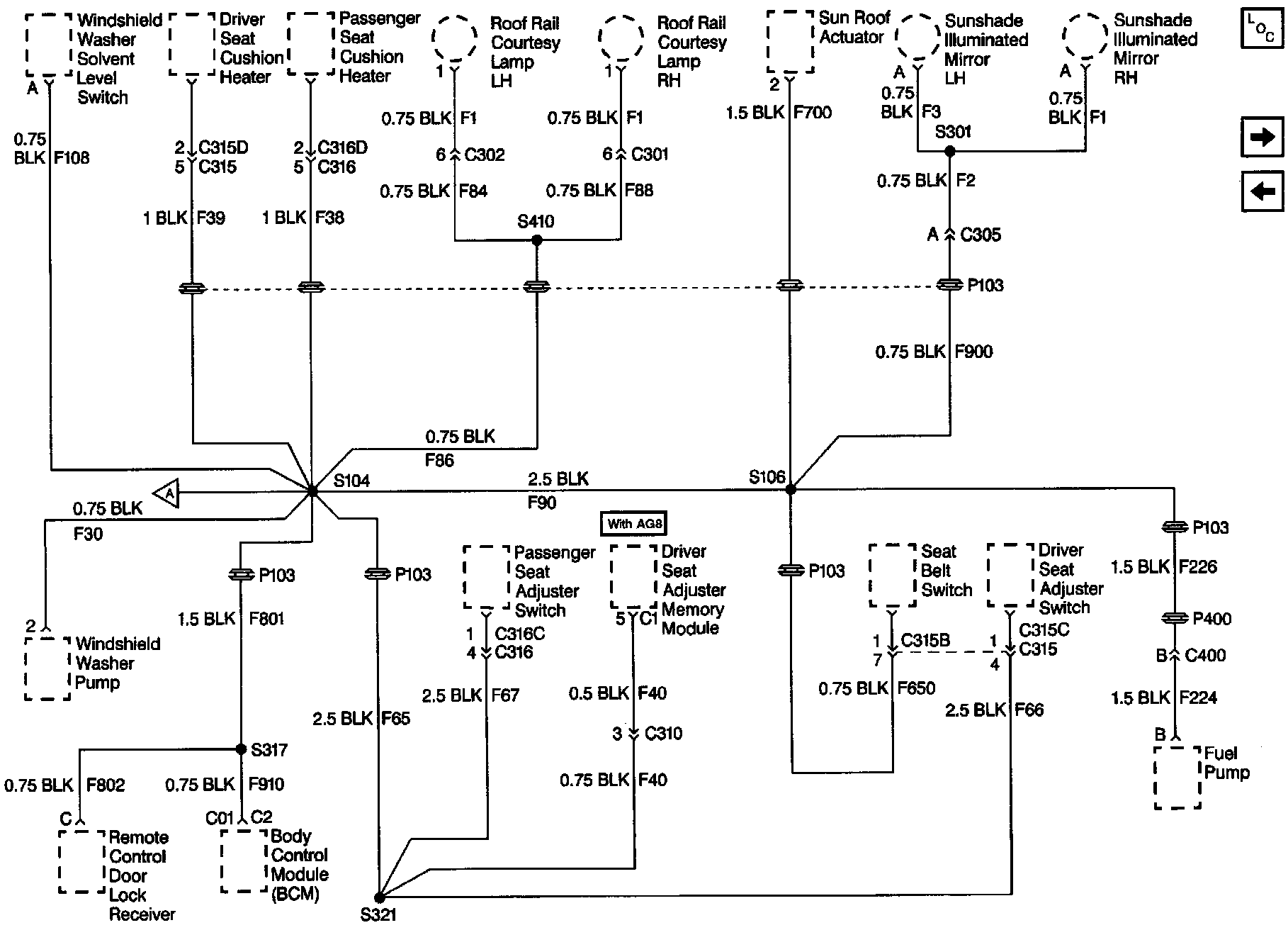

Ground Distribution Schematics: BCM, Sun Roof Actuator, BCM, RCDLR And Courtesy Lamps:
