Power Window Switch: Diagrams

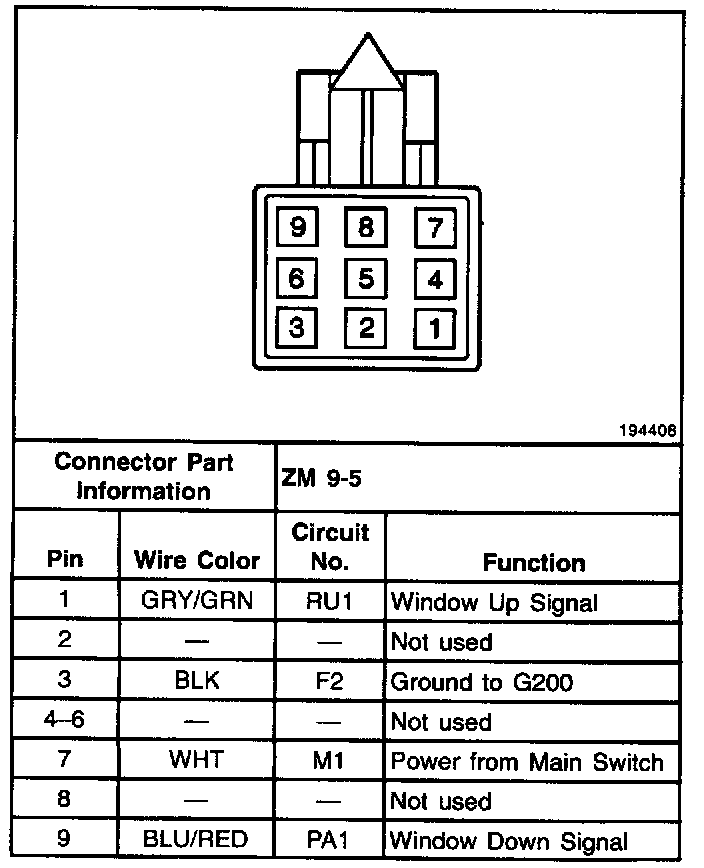

LH Front Side Door Window Switch:

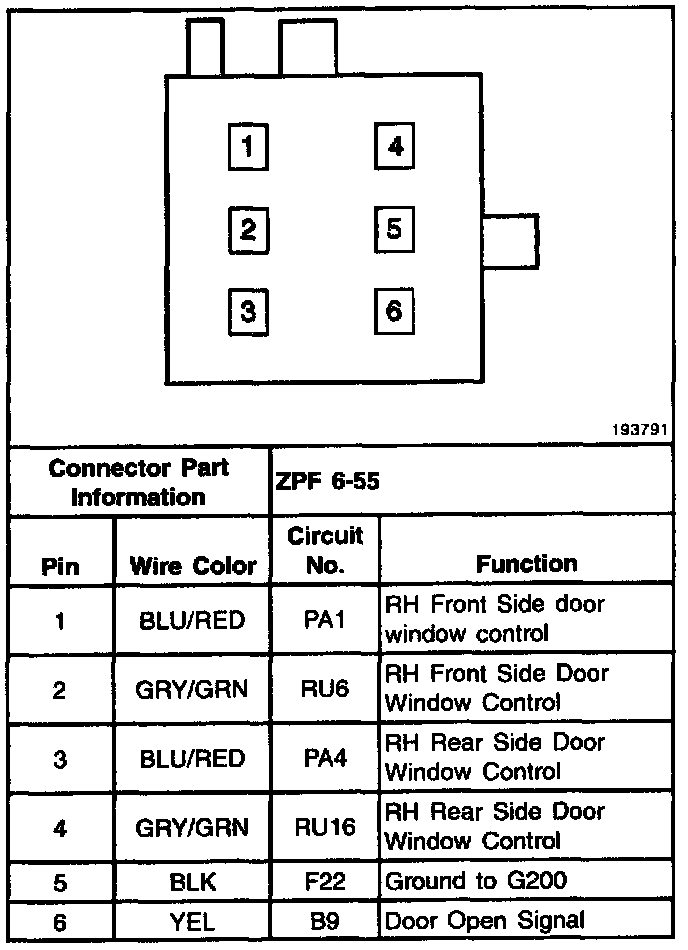

LH Rear Side Door Window Switch:

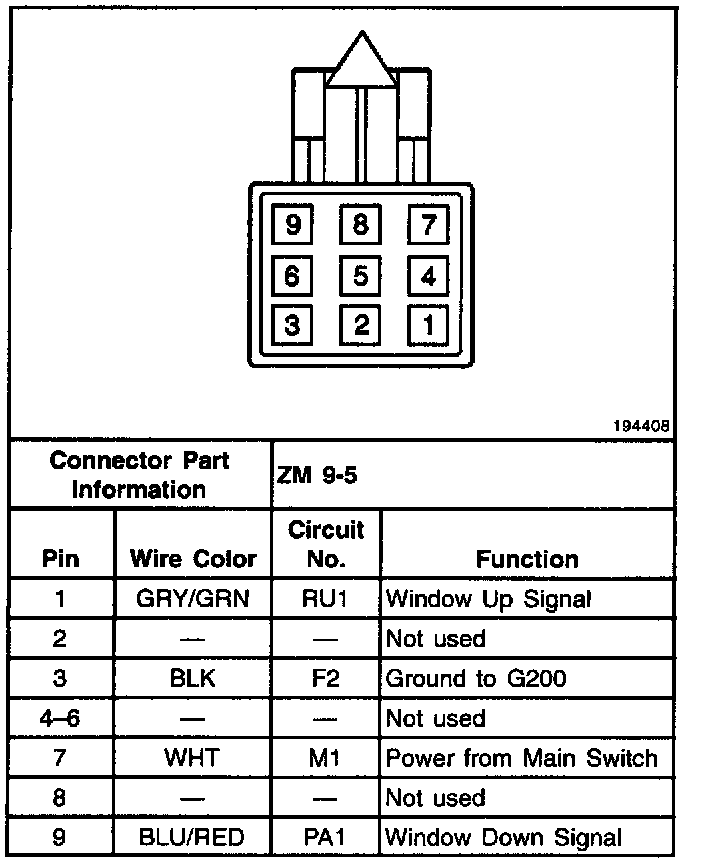

RH Front Side Door Window Switch:



RH Rear Side Door Window Switch:
