Headlamp Switch: Service and Repair

REMOVAL PROCEDURE

Headlamp Switch Replacement: Removal Procedure:

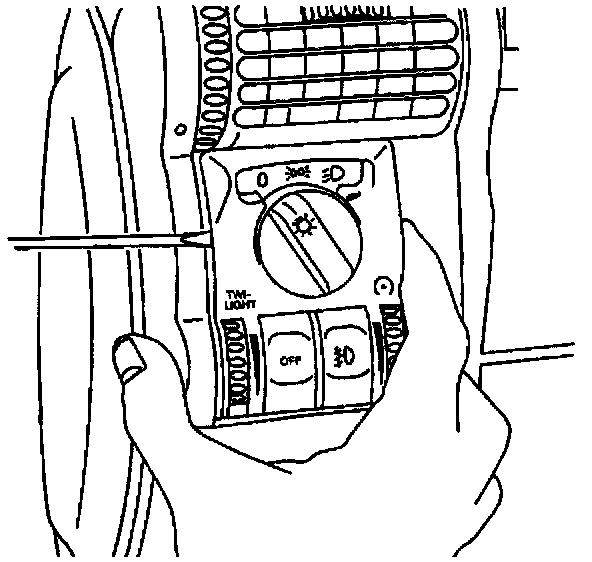

1. Remove Headlamp switch from instrument panel by prying on left side of switch.

IMPORTANT: To ensure instrument panel trim is not damaged, place a cloth behind prying tool when removing.

2. Remove switch from instrument panel.

INSTALLATION PROCEDURE

Headlamp Switch Replacement: Installation Procedure:

1. Install headlamp switch into dash seating fully.
2. Verify switch operation.
