Door Jamb Switch Replacement - Front

REMOVAL PROCEDURE

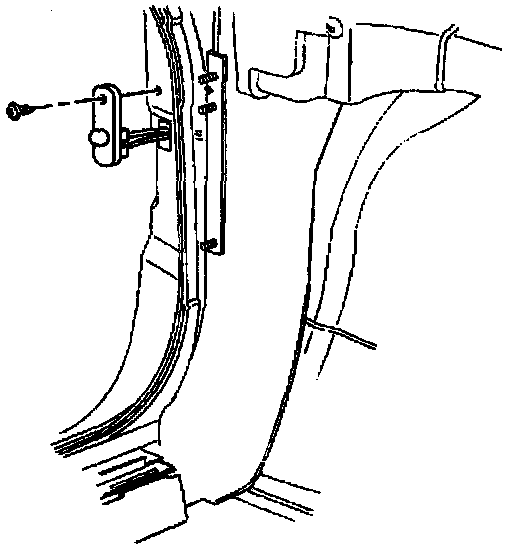

Door Jamb Switch Replacement (Front): Removal Procedure:

1. Remove the jamb switch screw.
2. Disconnect the jamb switch connectors.
3. Remove the jamb switch.

INSTALLATION PROCEDURE

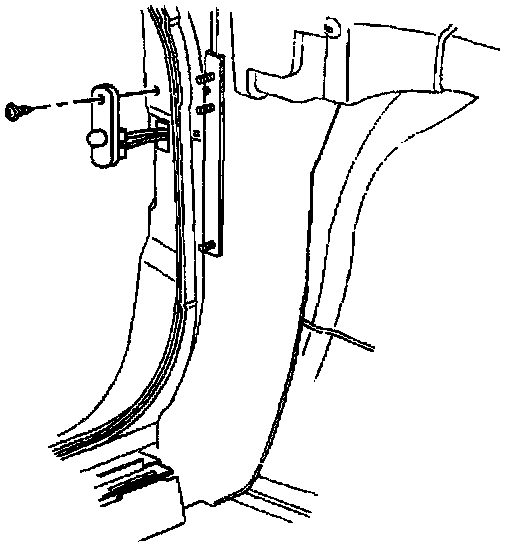

Door Jamb Switch Replacement (Front): Installation Procedure:

1. Install the jamb switch.
2. Connect the jamb switch connectors.
3. Install the jamb switch screw.
