Radiator Cooling Fan Motor Relay: Locations

FAN CONTROL RELAYS






FAN CONTROL RELAY

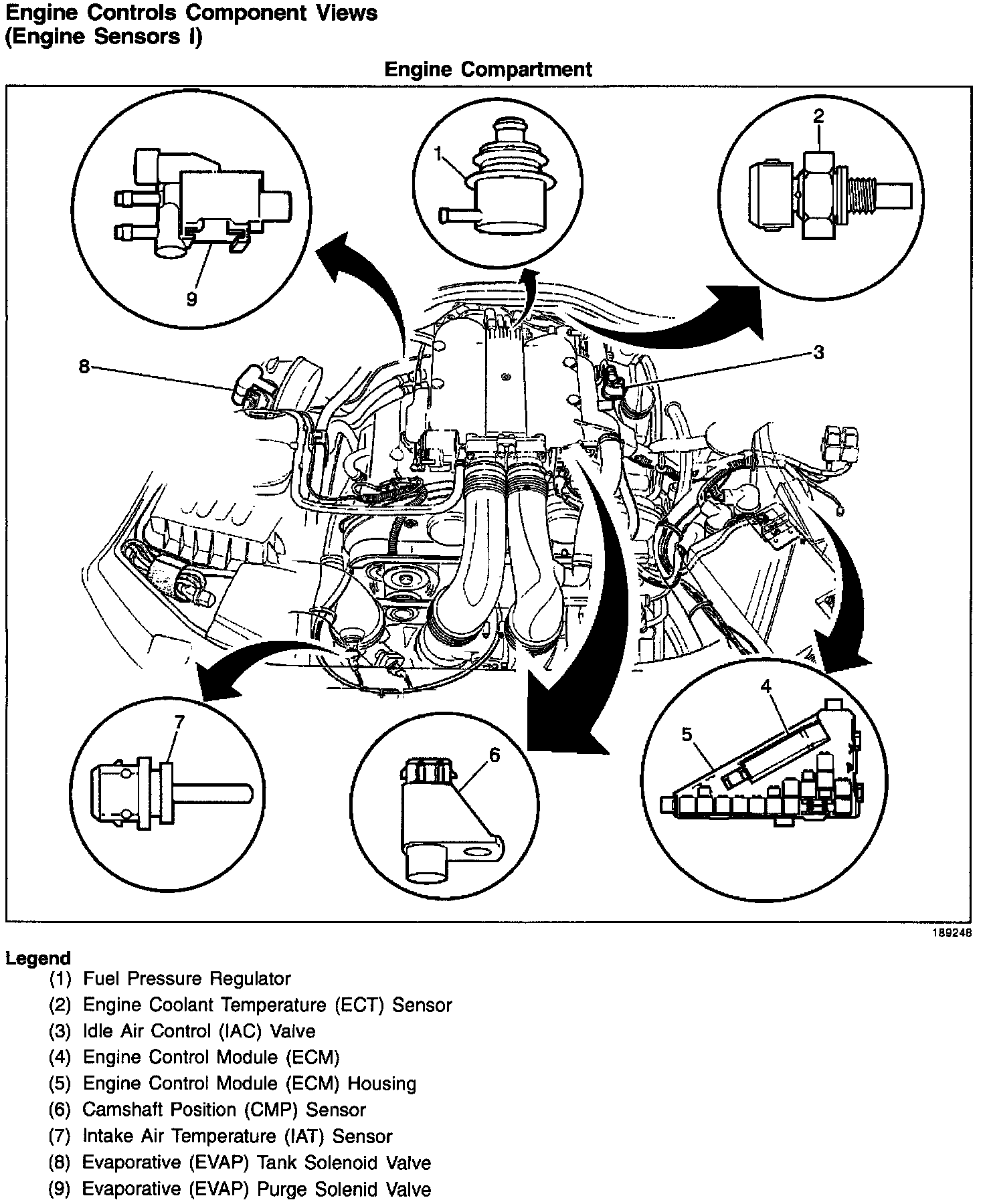

K26: LH front of the engine compartment, in the ECM housing, at position 12.

K52: LH front of the engine compartment, in the ECM housing, at position 14.

K67: LH front of the engine compartment, in the ECM housing, at position 20.

K87: LH front of the engine compartment, in the ECM housing, at position 15.

NOTE: The OE manufacture does not provide an exact relay location image.
