Radiator Cooling Fan Motor Relay: Diagrams

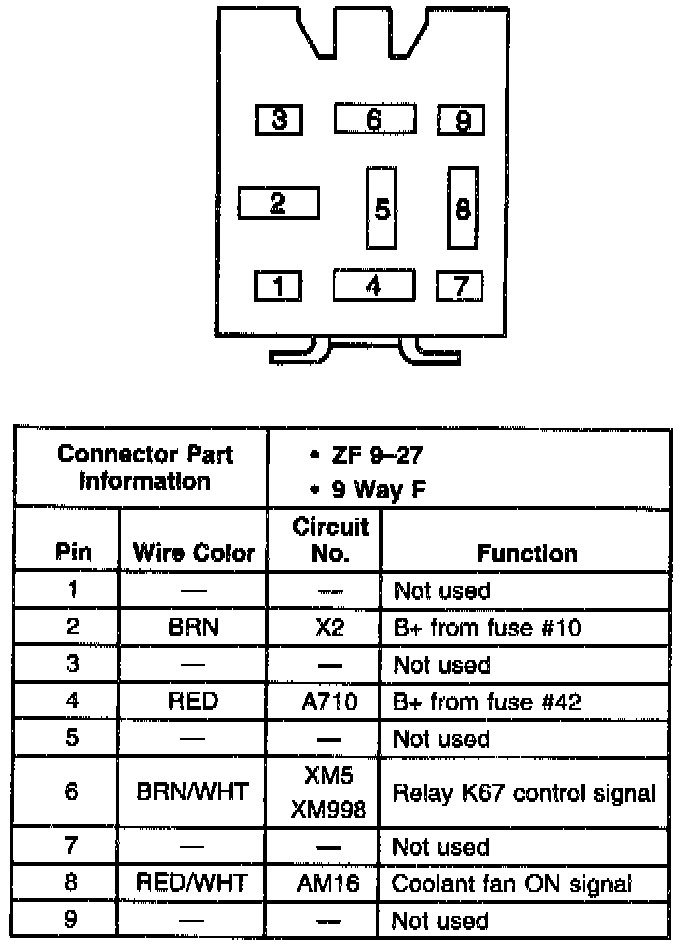

Fan Control Relay:

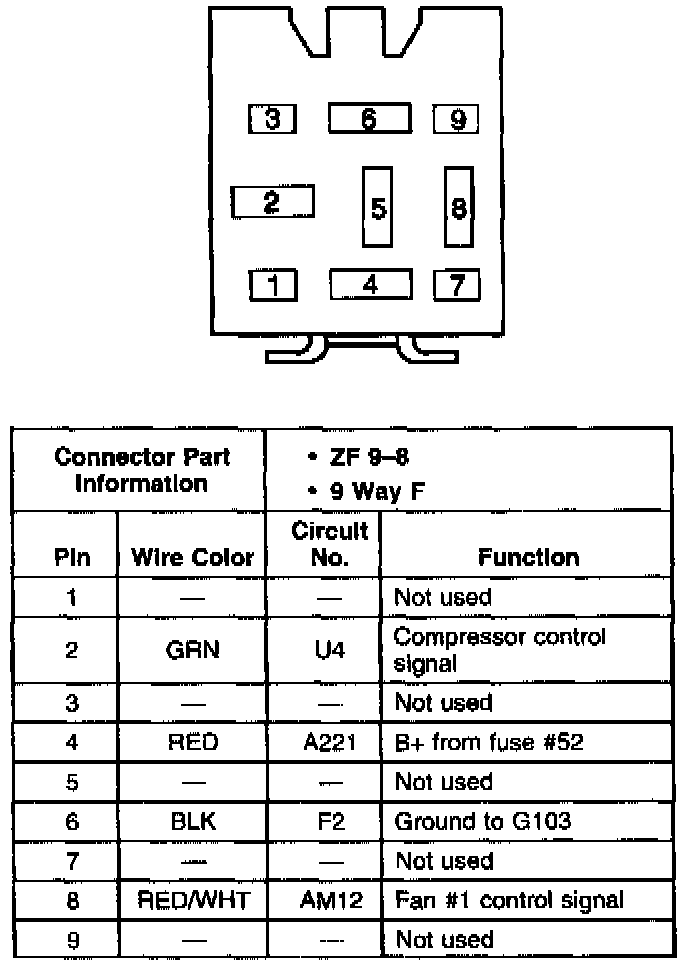

Fan Control Relay K28:

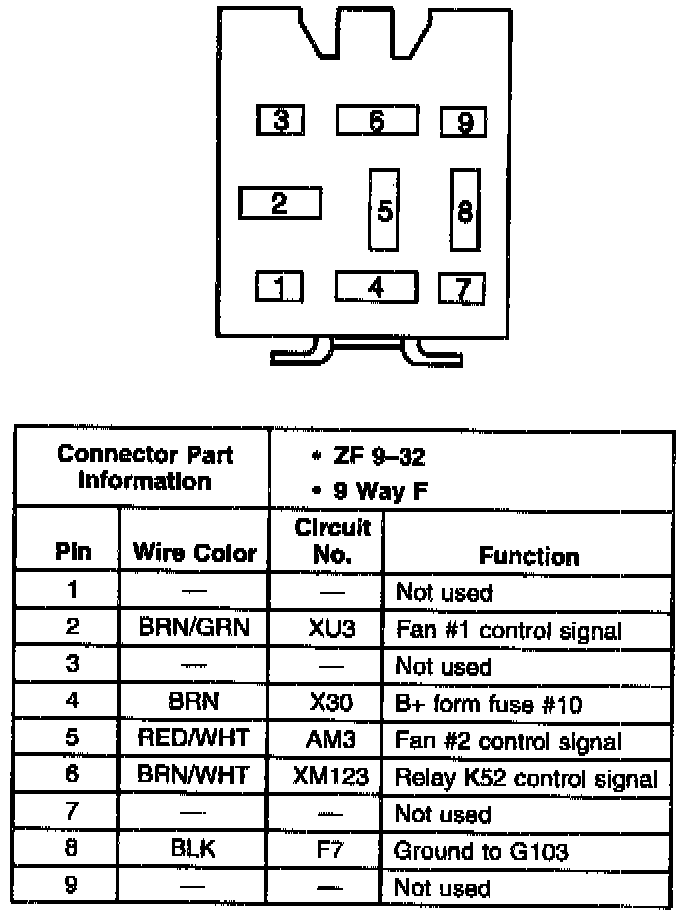

Fan Control Relay K52:

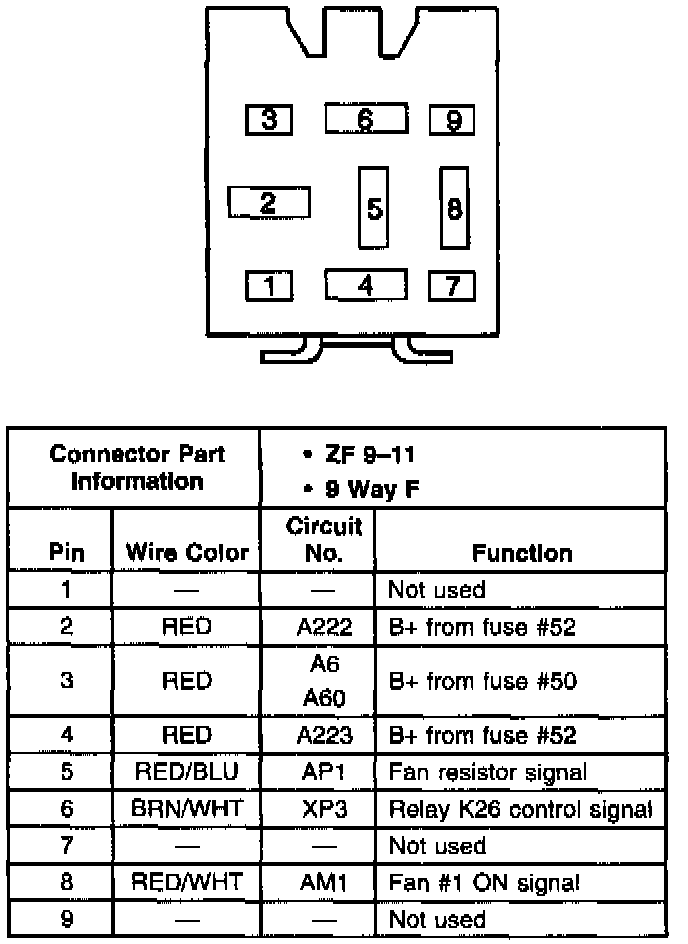

Fan Control Relay K67:

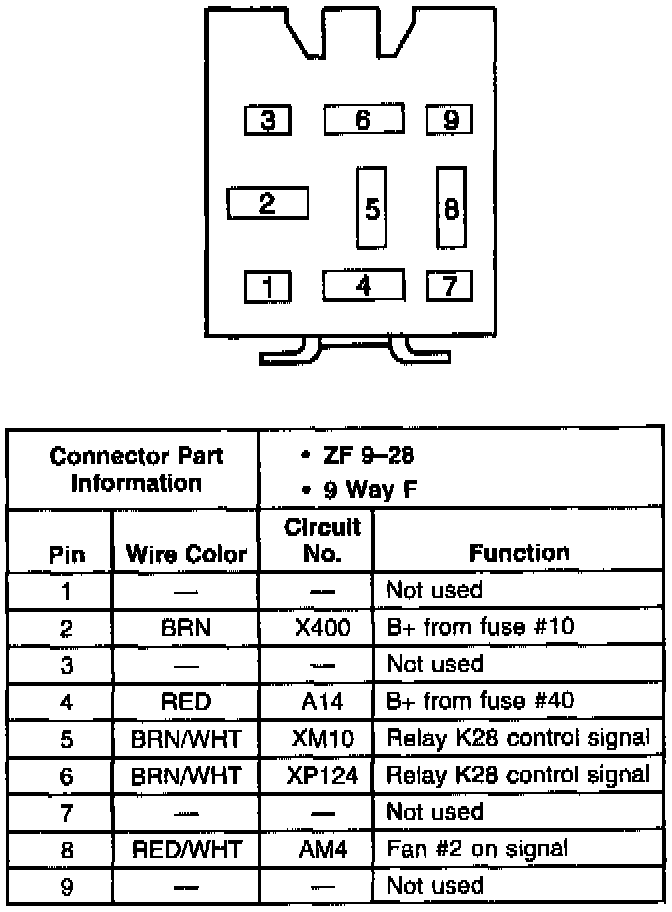

Fan Control Relay K87:
