TP, ECT, IAT, & Fuel Tank Sensors



ENGINE CONTROLS SCHEMATICS

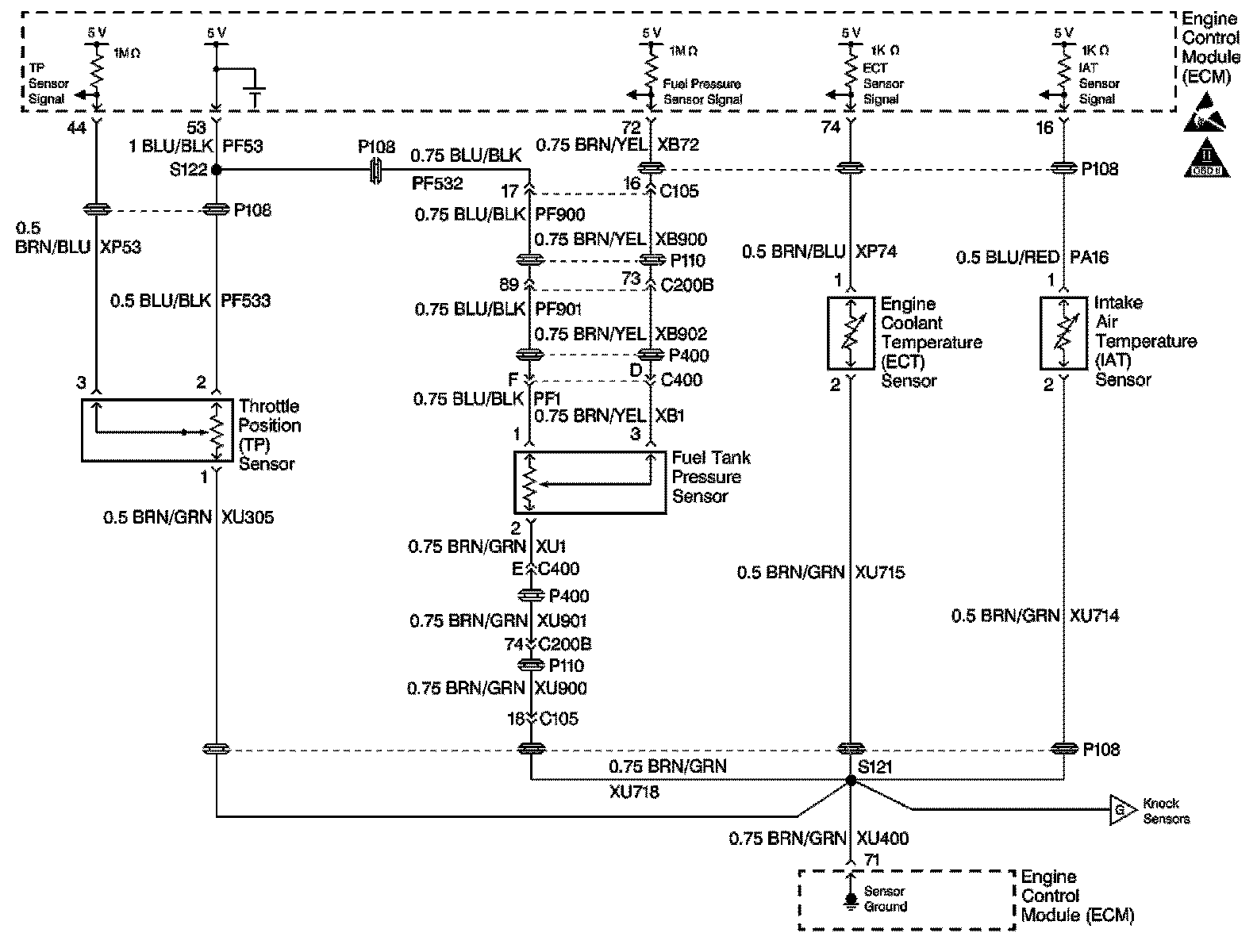

Engine Data Sensors - TP, ECT, IAT and Fuel Tank
