Automatic Transmission Range Switch

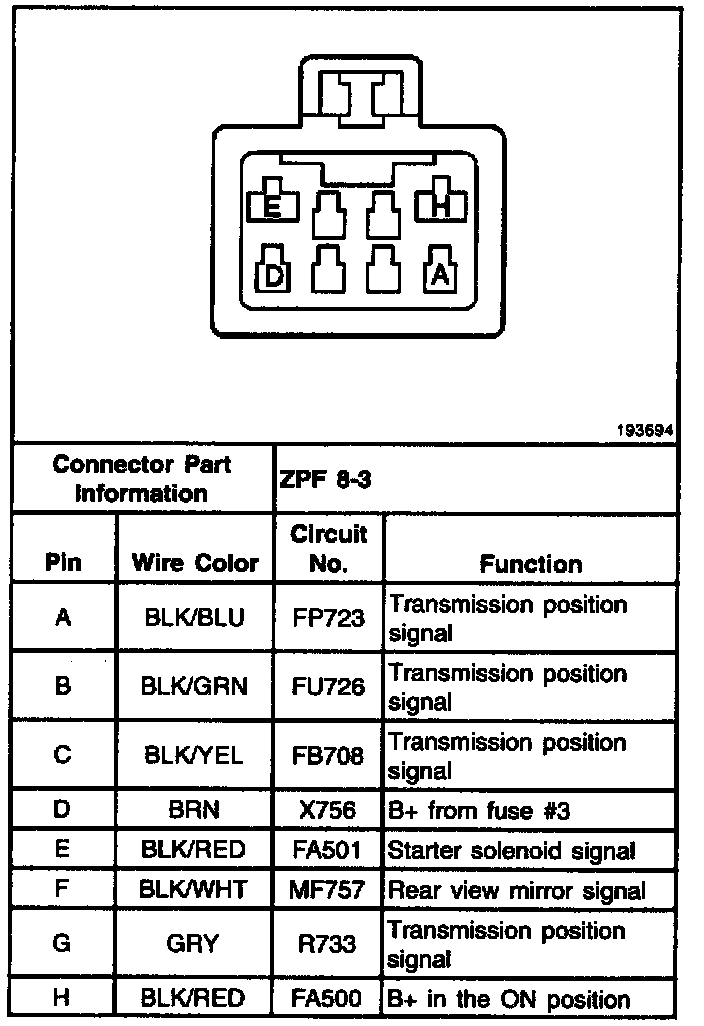

Automatic Transmission Range Switch:

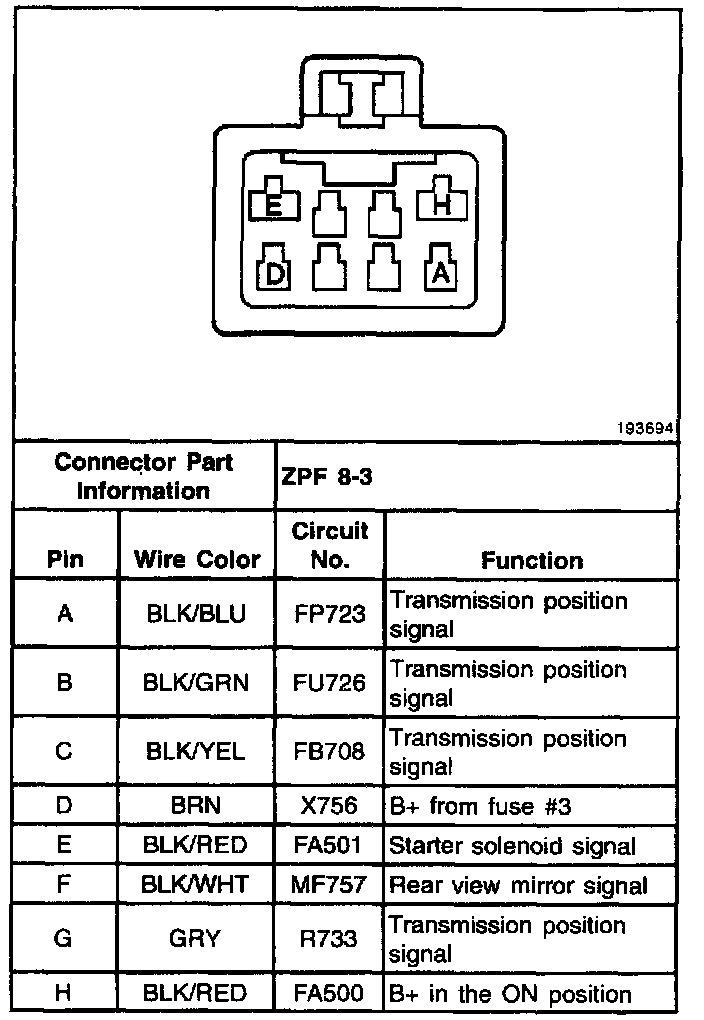

Automatic Transmission Range Switch:
