Window Regulator Motors And Automatic Transmission Switches
Window Regulator Motors And Automatic Transmission Switches

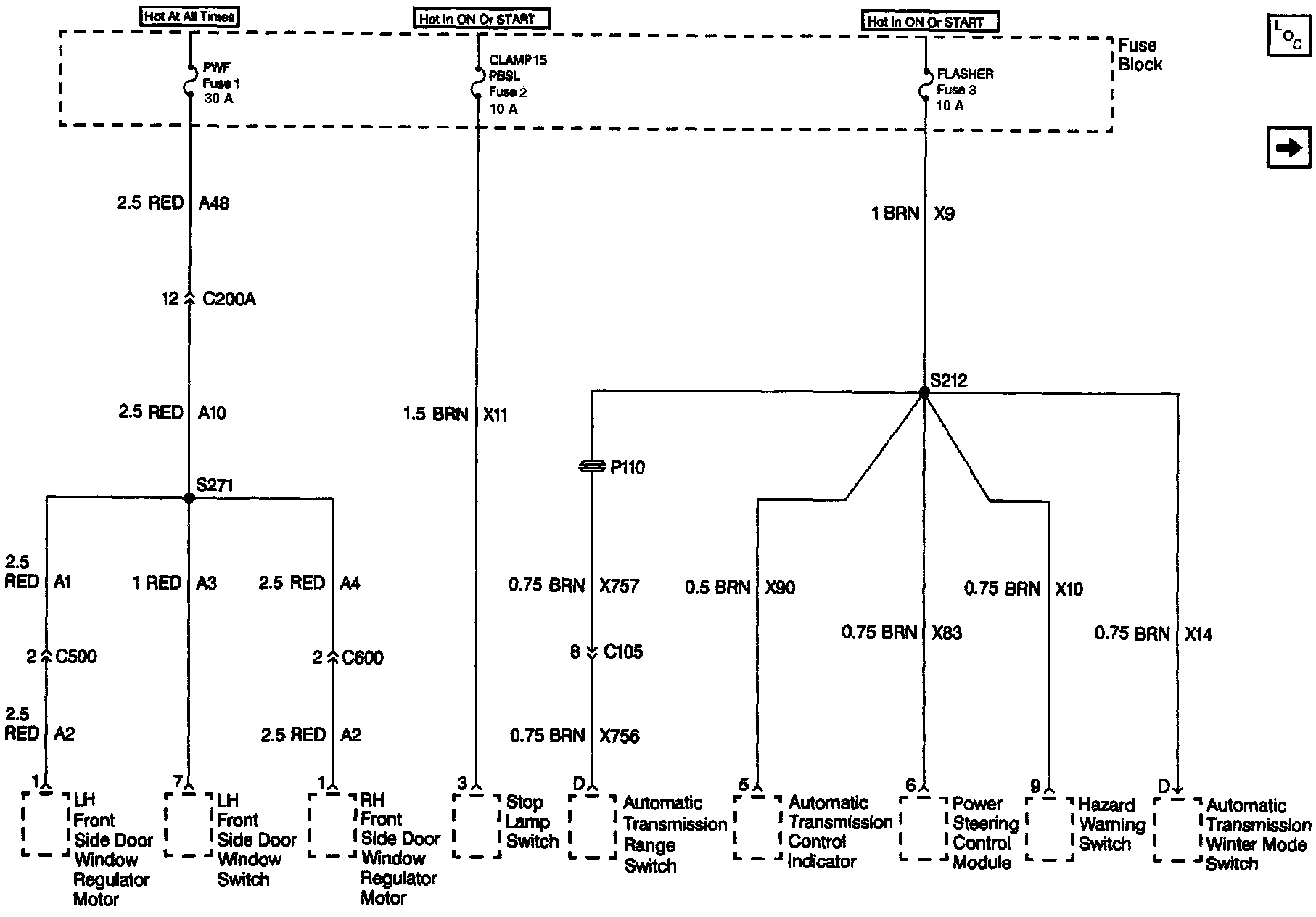

Fuse Block Details Schematics: Window Regulator Motors And Automatic Transmission Switches:
