Heater Relays, TCM And Rear Window Regulator Motors
Heater Relays, TCM And Rear Window Regulator Motors

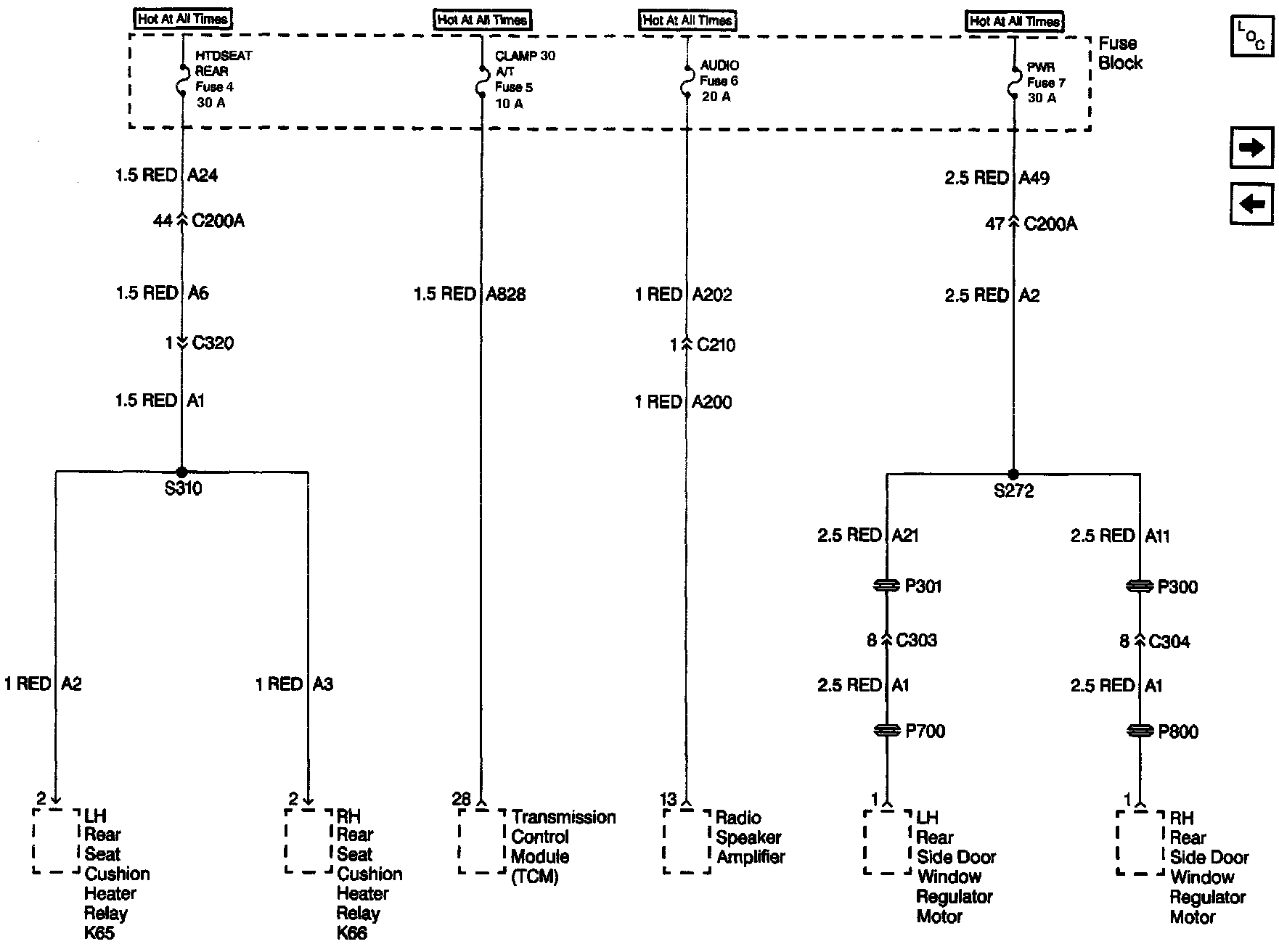

Fuse Block Details Schematics: Heater Relays, TCM And Rear Window Regulator Motors:
