Fuse Block, Low Beam and Park LP Relays
Fuse Block, Low Beam and Park LP Relays

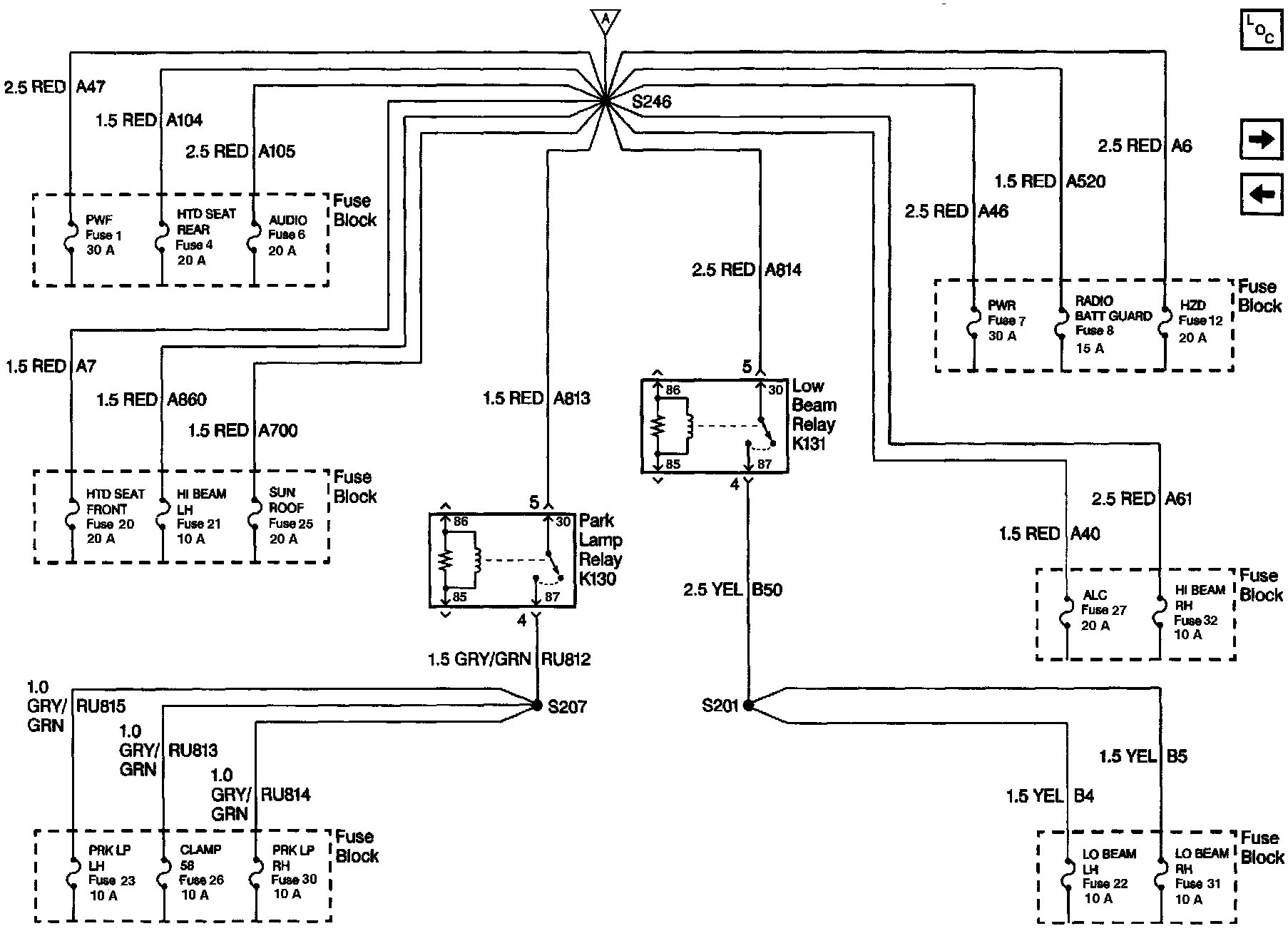

Power Distribution Schematics: Fuse Block, Low Beam And Park LP Relays:
