BCM, Heater And A/C Control And A/C Load Switch

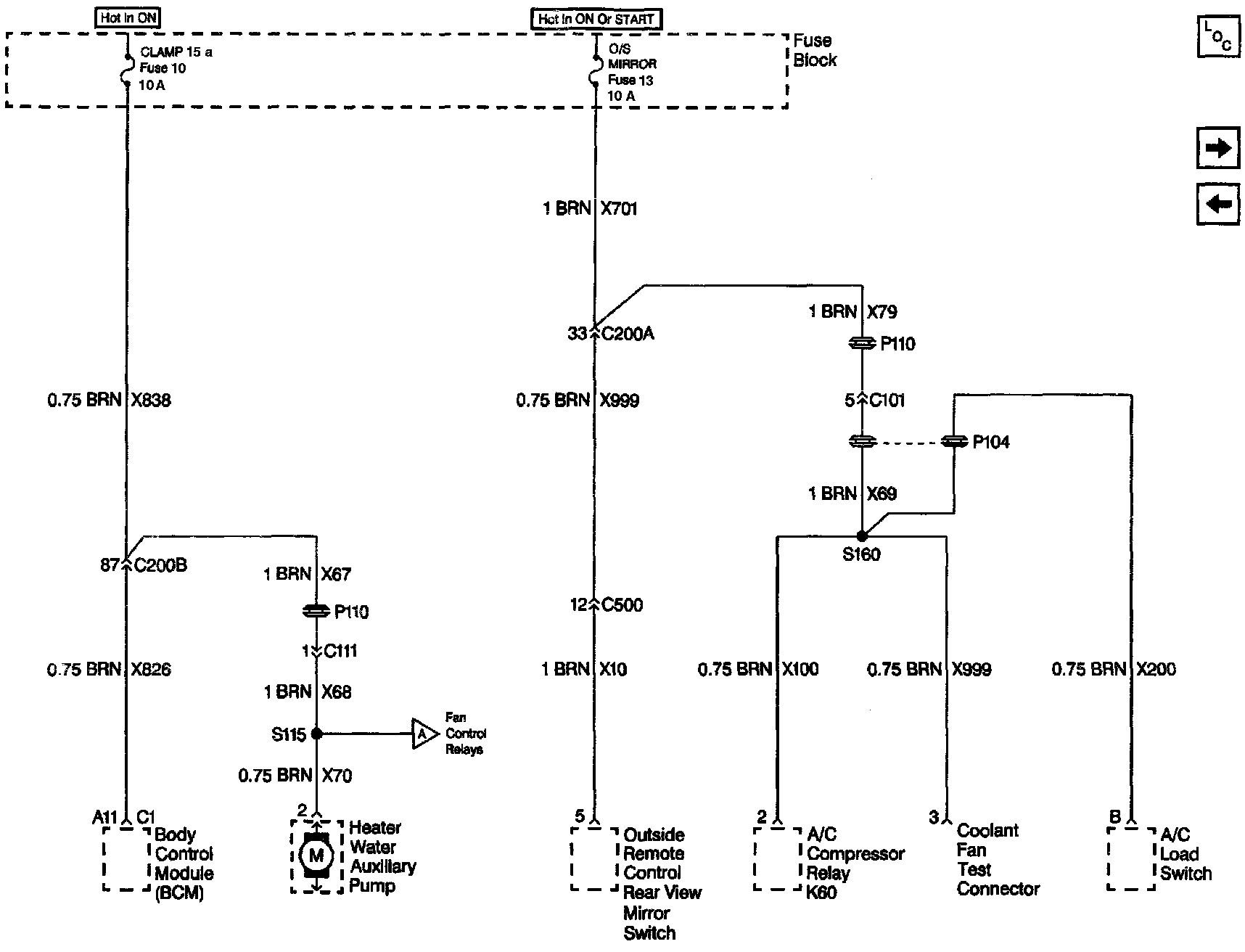

Fuse Block Details Schematics: BCM, Heater And A/C Control And A/C Load Switch:
