Brake Light Switch: Diagrams

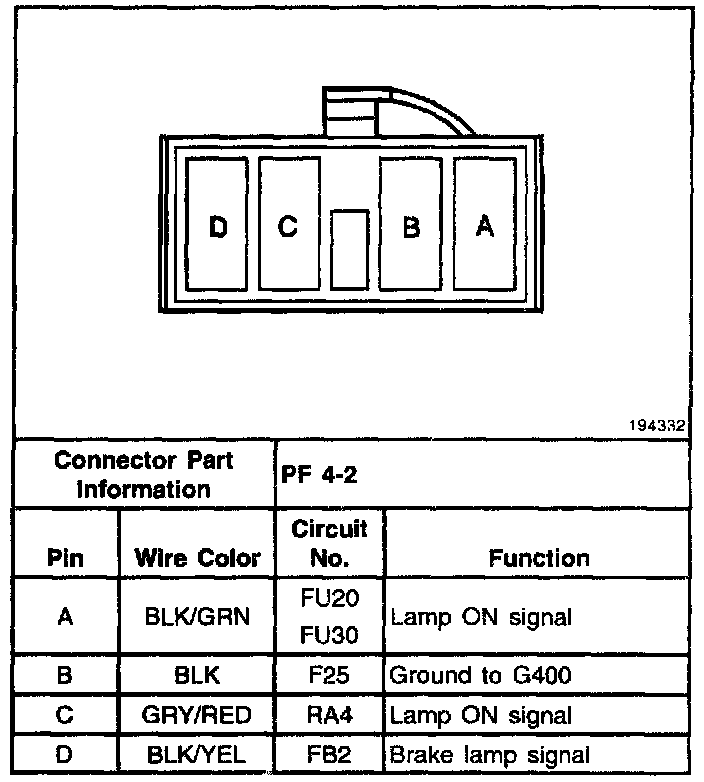

LH Stop/Taillamp:

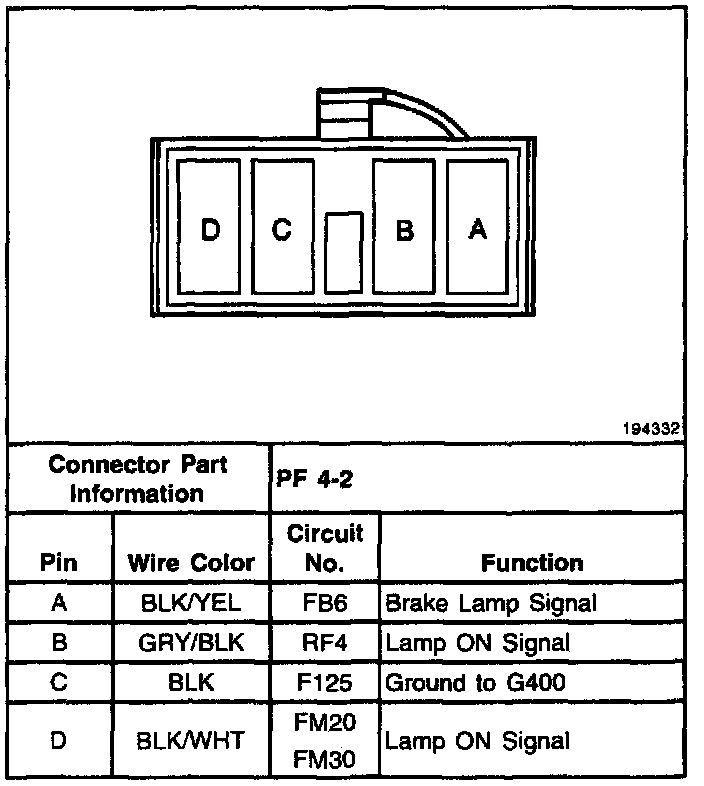

RH Stop/Taillamp:

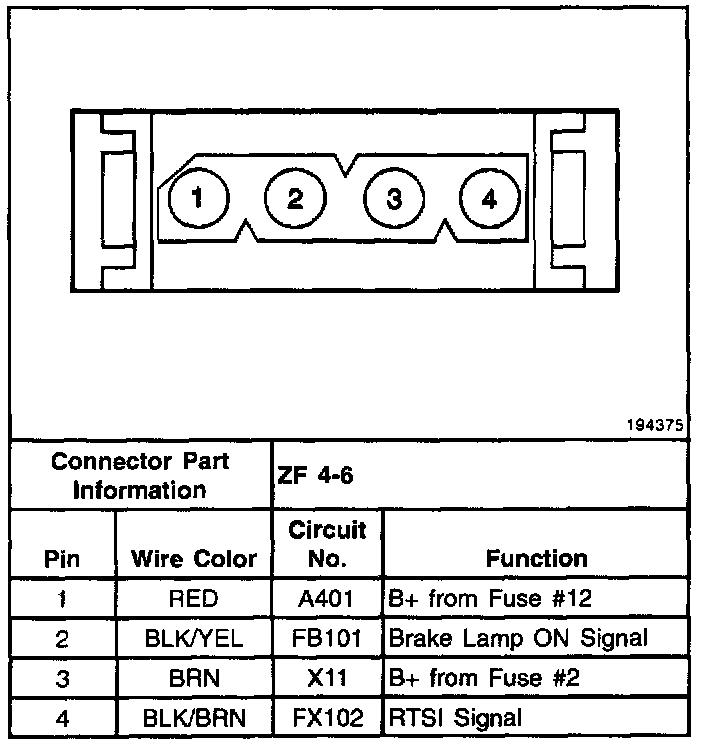

Stop Lamp Switch:

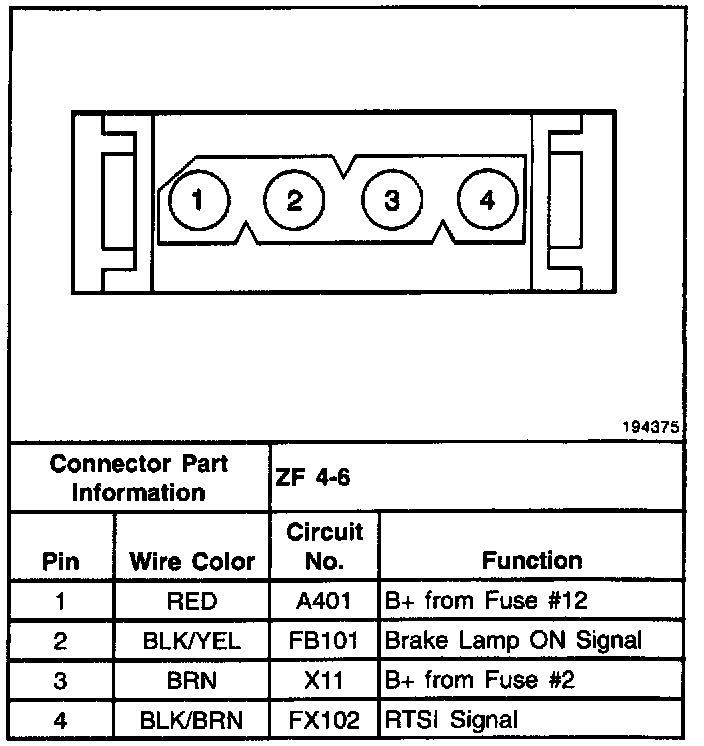

Stop Lamp Switch:
