Headlamp Bezel Replacement

REMOVAL PROCEDURE

Headlamp Bezel Replacement: Removal Procedure:

1. Remove the grille.

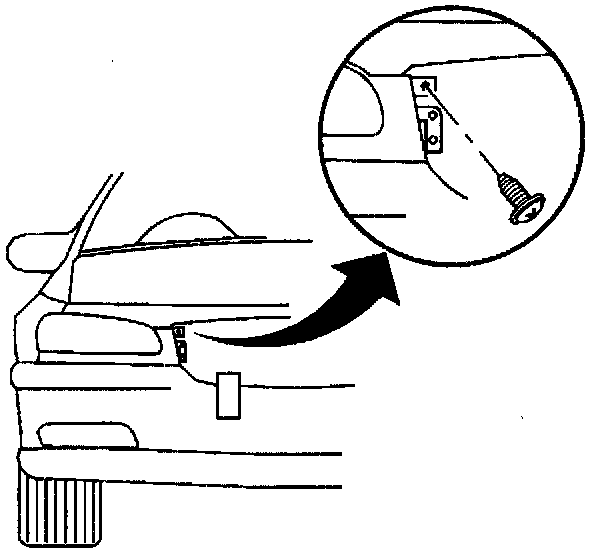

2. Remove the screw located in the upper corner of each headlamp lower trim.

Headlamp Bezel Replacement: Removal Procedure:

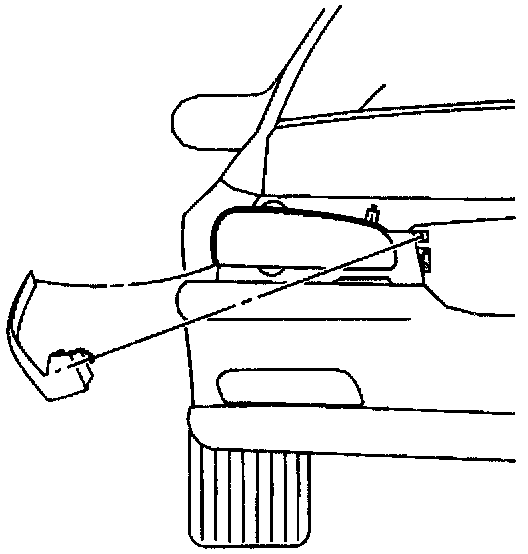

3. Unhook the edge or the headlamp lower trim from the fender.
4. Remove the headlamp lower trim.

INSTALLATION PROCEDURE

Headlamp Bezel Replacement: Installation Procedure:

1. Hook the headlamp lower trim to the tender to install.
2. Check that the headlamp lower trim is aligned with the fender.

Headlamp Bezel Replacement: Installation Procedure:

3. Install the headlamp lower trim screw.

Tighten
Tighten the headlamp lower trim screw until fully seated. DO NOT strip the headlamp lower trim screw.

4. Install the grille.
