Speedometer/Tachometer

REMOVAL PROCEDURE

IP Cluster Gauge Replacement Speedometer/Tachometer: Removal Procedure:

1. Remove the instrument cluster.
2. Remove the screws from speedometer/tachometer gauge module.

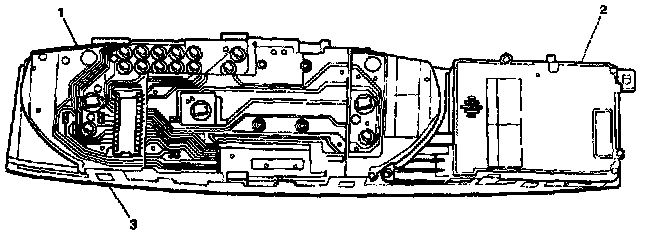

3. Remove the speedometer/tachometer gauge module (1) from lens (3) by pulling locking tabs back and removing.

INSTALLATION PROCEDURE

IP Cluster Gauge Replacement Speedometer/Tachometer: Installation Procedure:

1. Install the speedometer/tachometer gauge module to cluster lens.
2. Install the screws to speedometer/tachometer gauge module.

Tighten
Tighten the screws until fully seated but not stripped.

3. Install the instrument cluster.
