Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> System Operation Check >> System Check - Thermal Expansion Valve (TXV)

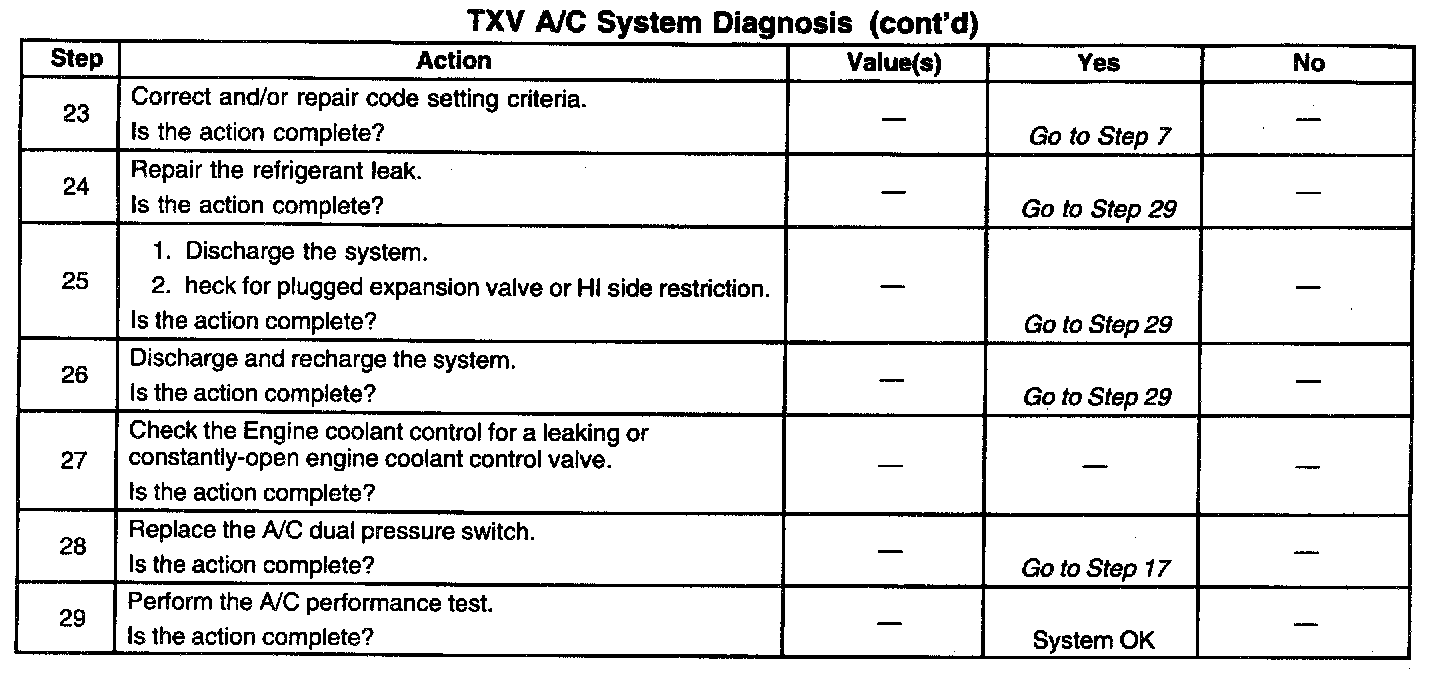

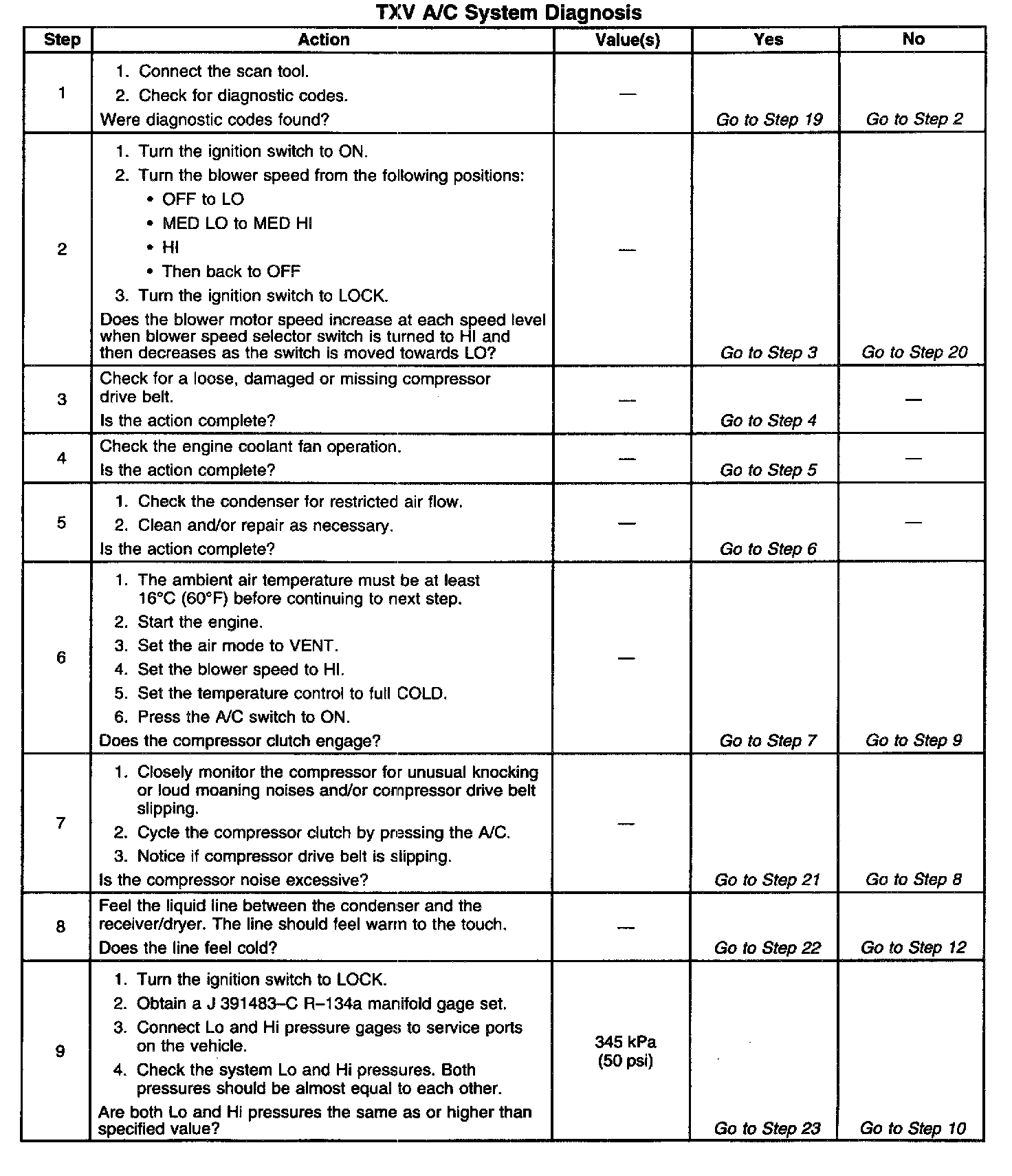

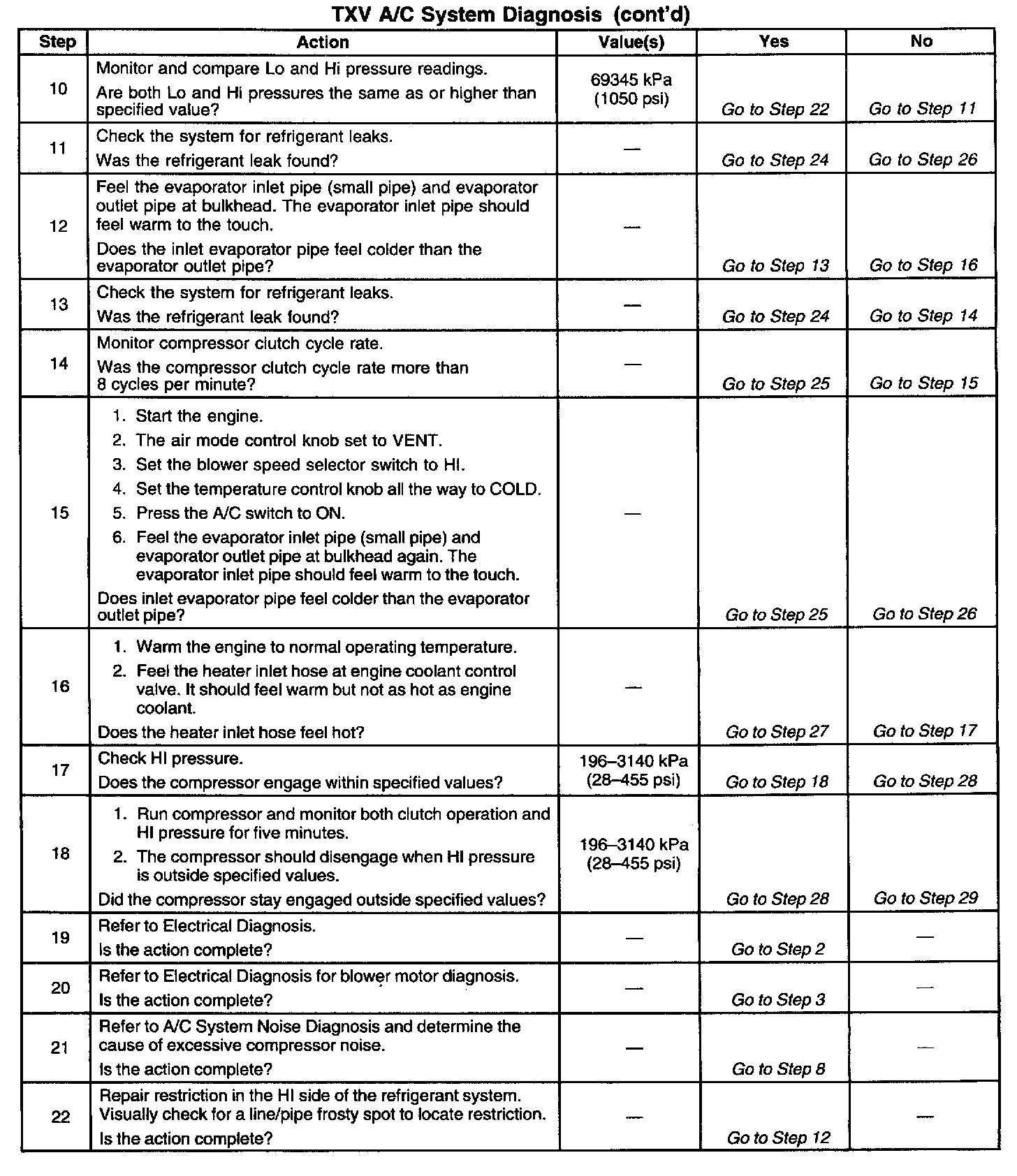

System Check - Thermal Expansion Valve (TXV)
