Clutch Coil

Removal Procedure

Tools Required
^ J 41790 Compressor Holding Fixture
^ J 8433 Compressor Pulley Puller
^ J 8433-3 Forcing Screw
^ J 33025 Clutch Coil Puller Legs
^ J 33023-A Puller Pilot

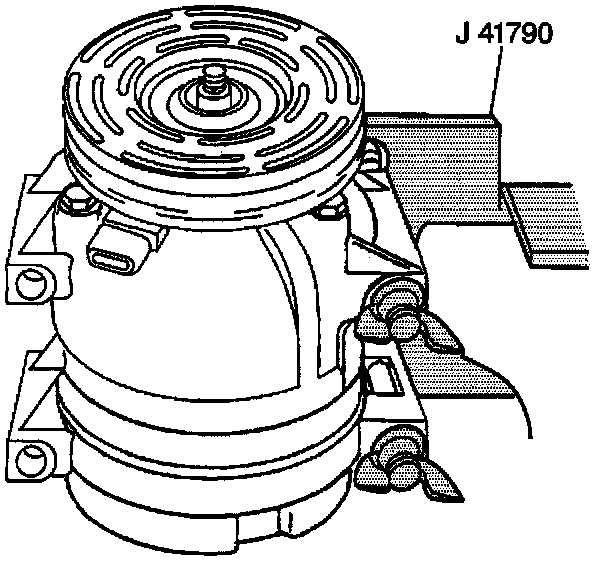

1. Install the compressor onto the J 41790.

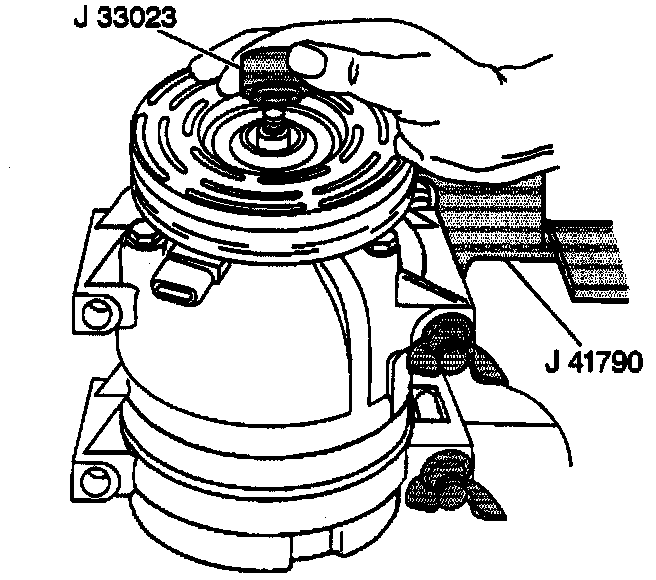

2. Install the J 33023-A onto the front head of the compressor.
3. Remove the compressor clutch plate and hub assembly.
4. Remove the compressor rotor and bearing assembly.

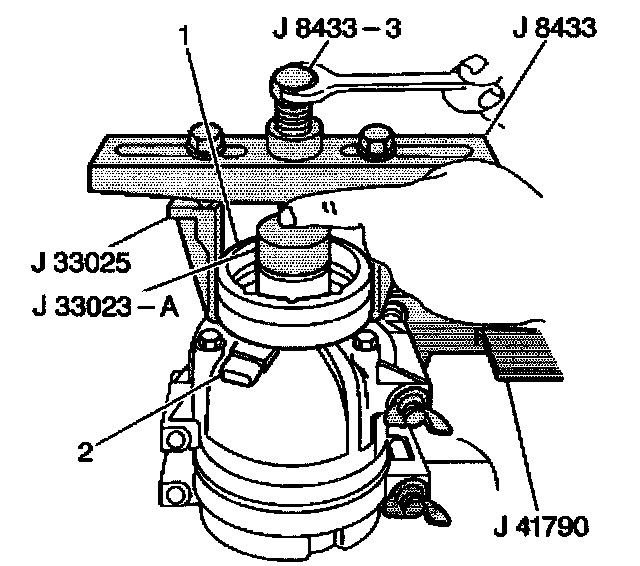

5. Mark the clutch coil terminal location (2) on the compressor front head.
6. Install the J 33025 onto the J 8433.
7. Install the J 8433 onto the compressor clutch coil (1) and tighten the puller leg bolts.
8. Tighten the center forcing screw J 8433-3 of the compressor pulley puller J 8433 against the puller pilot to remove the compressor clutch coil from the compressor.

Installation Procedure

Tools Required
^ J 33024 Clutch Coil Installer Adaptor
^ J 33025 Clutch Coil Puller Legs
^ J 8433 Compressor Pulley Puller
^ J 8433-3 Forcing Screw

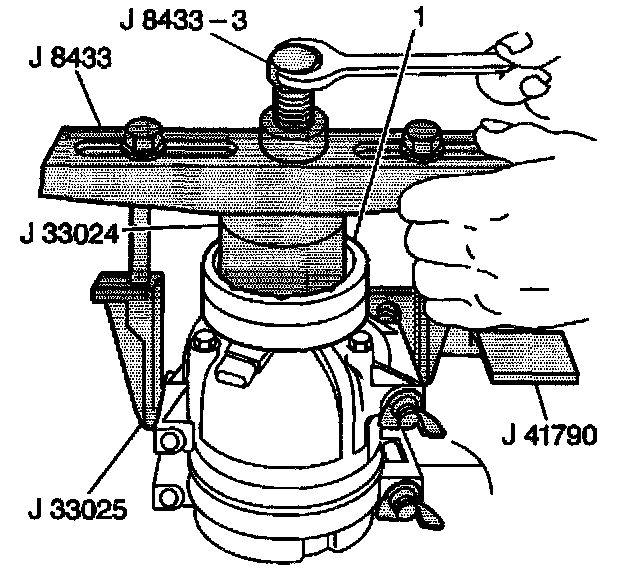

1. Place the clutch coil assembly (1) on the front head with the clutch coil terminal at the positioned at the mark made during disassembly.
2. Place the J 33024 over the internal opening of the clutch coil housing end align Installer with the compressor front head.
3. Install the J 8433-3 Into the J 8433 end center the screw in the countersunk center hole of the J 33024.
4. Install the 4 Inch through bolts and washers from the J 42138 tool kit into the J 33025 and attach them to the compressor mounting bosses.
5. Turn the center forcing screw of the J 8433 to press the clutch coil onto the front head until the clutch coil is fully seated.
Make sure the clutch coil and the J 33024 stay in-line with each other while pressing the clutch coil onto the compressor.
6. Install the compressor clutch rotor end bearing assembly.
7. Install the compressor clutch plate and hub assembly.
8. Remove the compressor from the J 41790.
