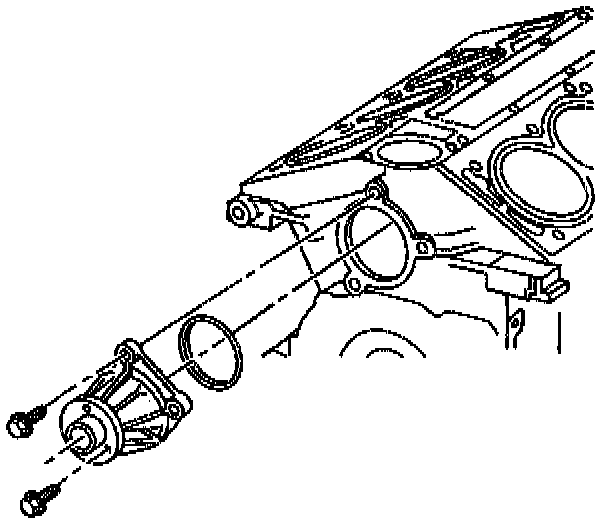

Water Pump Installation

1. Install the water pump.
2. Coat the water pump seal ring with silicone grease, GM P/N 12345579 or equivalent.
3. Install the water pump seal.

Notice: Refer to Fastener Notice in Service Precautions.





4. Install the water pump bolts.
- Tighten the water pump bolts to 25 Nm (18 ft lbs).
