Water Crossover Removal

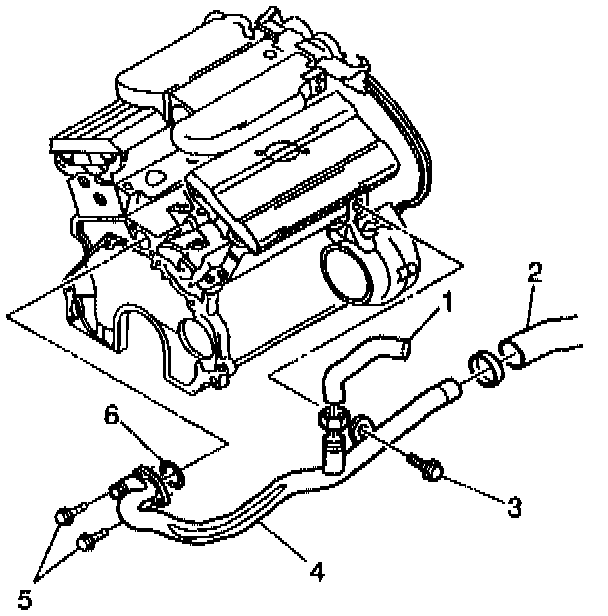

1. Remove the coolant intake pipe support bolt (3).
2. Remove the coolant intake pipe bolts (5).
3. Remove the coolant intake pipe (4).
4. Remove the coolant intake seal (6).

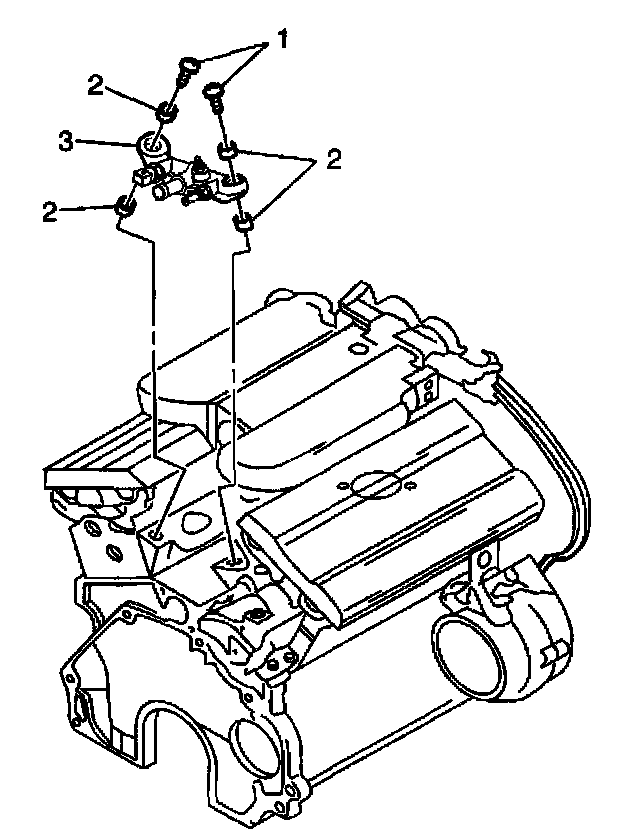

5. Remove the coolant bridge bolts (1).
6. Remove the coolant bridge upper seals (2).
7. Remove the coolant bridge (3).
8. Remove the coolant bridge lower seals (2).
