Timing Belt Tensioner Pulley Installation

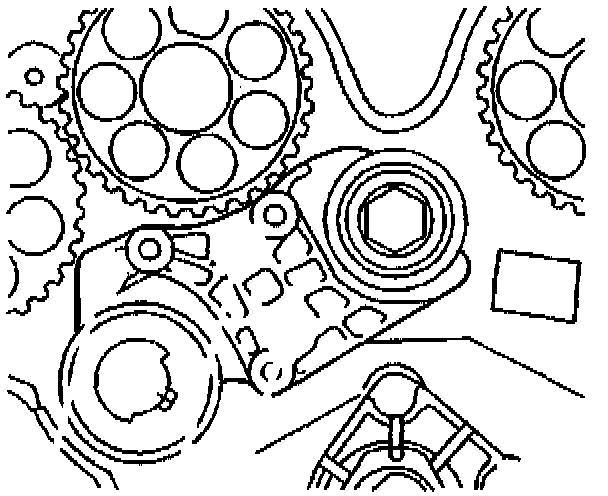

1. Install the timing belt tensioner bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the timing belt tensioner bracket bolts.
- Tighten the timing belt tensioner bracket bolts to 40 Nm (30 ft lbs).
