Piston Selection

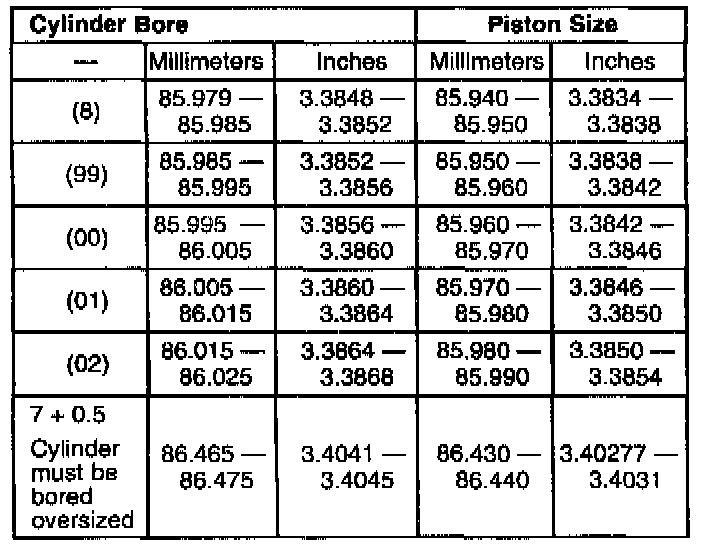

Select the proper size piston for each cylinder bore after the cylinder has been honed. Measure the cylinder bore. Refer to the table for the correct size piston to use for that cylinder. The cylinder bores and the pistons are stamped with a code for identifying the bore and piston size match-up.
