Oil Pan Removal

LOWER OIL PAN
1. Disconnect the oil level sensor connection.

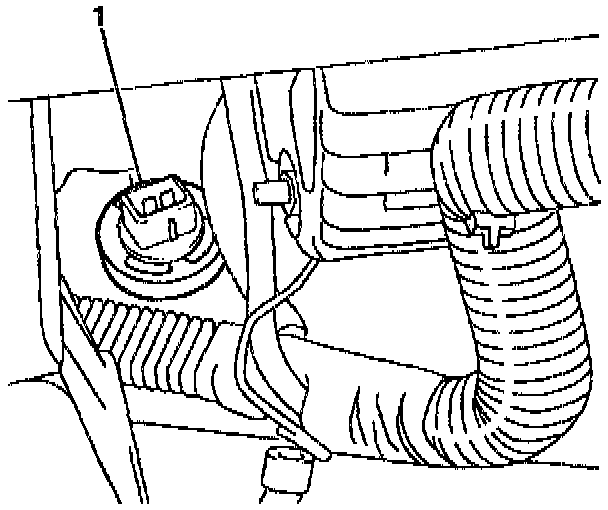

2. Remove the oil level sensor wire electrical connector C-clip (1) from the upper oil pan.
3. Remove the lower oil pan bolts.





4. Remove the lower oil pan from the upper oil pan.
5. Pull the oil level sensor electrical connection from the upper oil pan.


UPPER OIL PAN
1. Remove the A/C compressor hose strap bolt from the front of the upper oil pan.
2. Remove the oil pump intake pipe bolts.
3. Remove the oil pump intake pipe.





4. Remove the upper oil pan bolts.
5. Remove the upper oil pan.
