Oil Cooler Installation

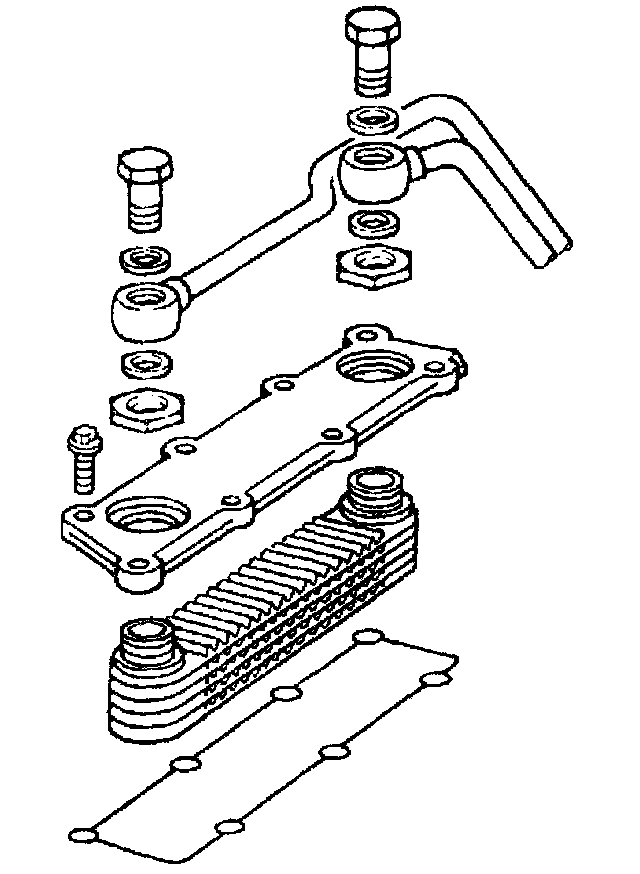

1. Install the engine oil cooler.

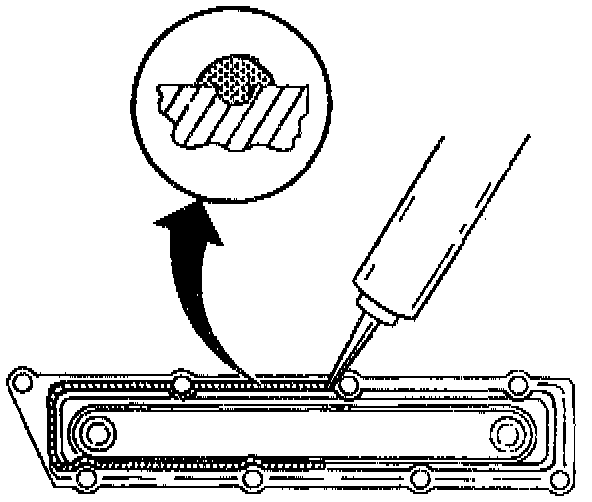

2. Apply a 2 mm (0.08 in) bead of silicone sealer, GIVI P/N 12345997, in the groove around the engine oil cooler cover in place of the old seal.
3. Install the engine oil cooler cover.

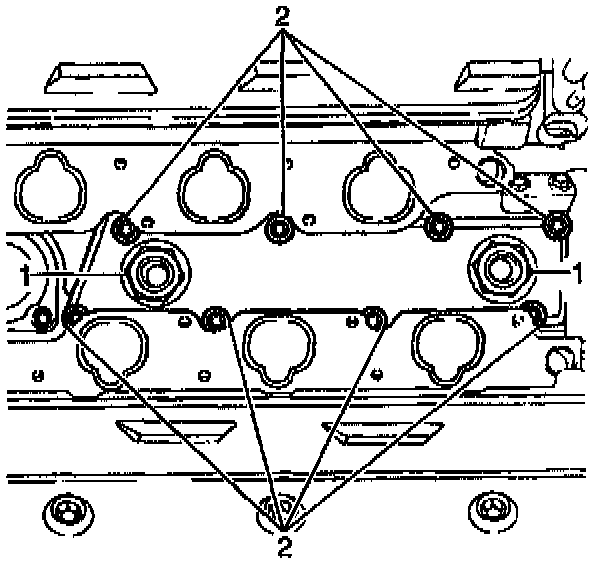

4. Install the engine oil cooler cover bolts (2).
- Tighten the engine oil cooler cover bolts to 30 Nm (22 ft lbs).

5. Install the engine oil cooler inlet and outlet nuts (1).
- Tighten the engine oil cooler inlet and outlet nuts to 20 Nm (15 ft lbs).

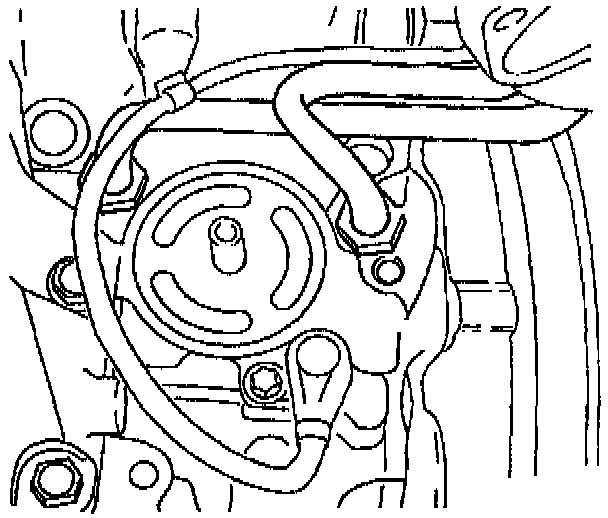

6. Install the oil feed line.
7. Install the return line.
8. Install the oil feed line to the engine block.
- Tighten the oil feed line to 30 Nm (22 ft lbs).

9. Install the return line to the engine block.
- Tighten the return line to 30 Nm (22 ft lbs).

10. Install the engine oil cooler line clamp.
11. Install the crank sensor.
12. Install the crank sensor bolt.
- Tighten the crank sensor bolt to 8 Nm (71 inch lbs).

13. Install the oil filter.
- Tighten the oil filter to 15 Nm (11 ft lbs).





14. Install the oil feed and install the return lines to the engine oil cooler. Use four new seals.
- Tighten the oil feed and tighten the return lines to 30 Nm (22 ft lbs).
