Cylinder Head Assemble

- TOOL REQUIRED
- J 41775 Valve Seal Installer

1. Coat the valve stem with engine oil.
2. Insert the valve stem into the proper port.
3. Install the valve spring seat.

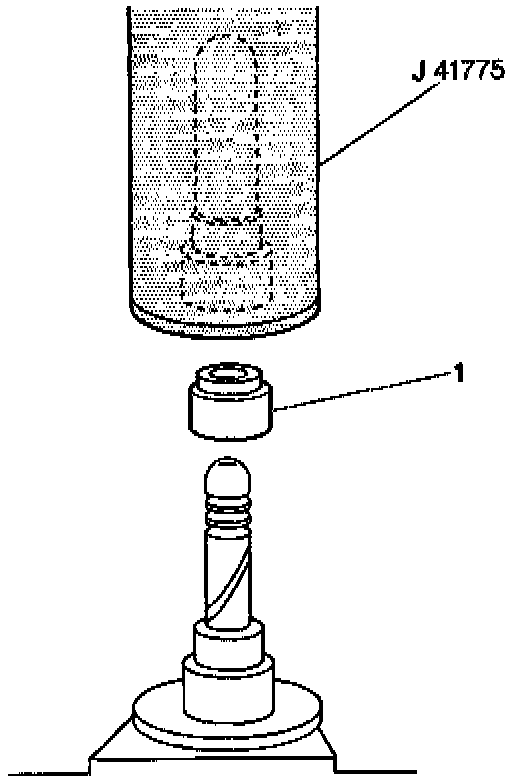

4. Use the J 41775 to insert the valve seal (1) into the cylinder head.
5. Install the valve spring.
6. Install the cap on the valve stem.
7. Use the J 8062 and the J 41774 to compress the valve spring.
8. Perform the following steps to install the valve stem keys:
8.1 Use a light grease to hold the keys in place while removing the J 8062 and the J 41774.
8.2 Seat the valve stem keys in the upper groove of the valve stem.

9. Install the lifter.
10. Repeat the above sequence for the remaining valves.
