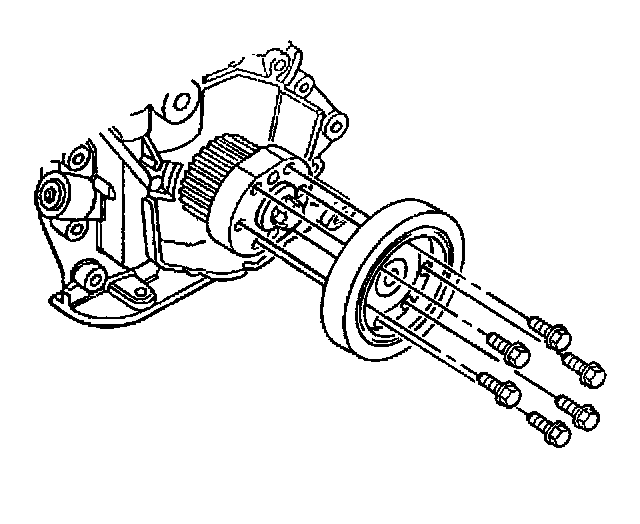

Crankshaft Balancer Installation

1. Install the crankshaft balancer.





2. Install the crankshaft balancer bolts.
- Tighten the crankshaft balancer bolts to 20 Nm (15 ft lbs).
