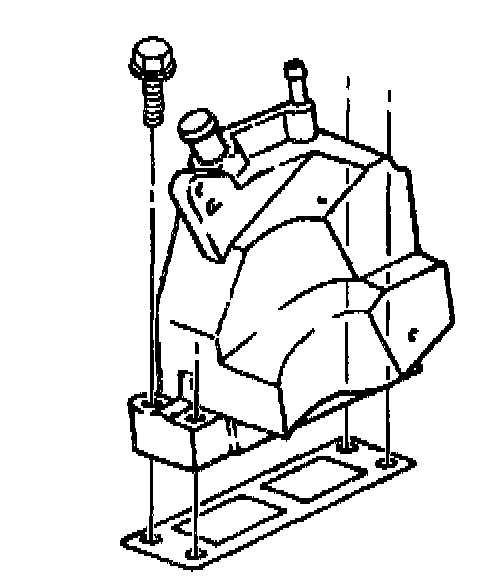

Crankcase Vent Housing Removal (Engine Chamber)
Crankcase Vent Housing Removal (Engine Chamber)
1.
Remove the hoses from the crankcase vent housing.
2.
Remove the crankcase vent housing bolts.
3.
Remove the crankcase vent housing.
4.
Remove the crankcase vent housing gasket.
