Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Internal Components

Internal Components

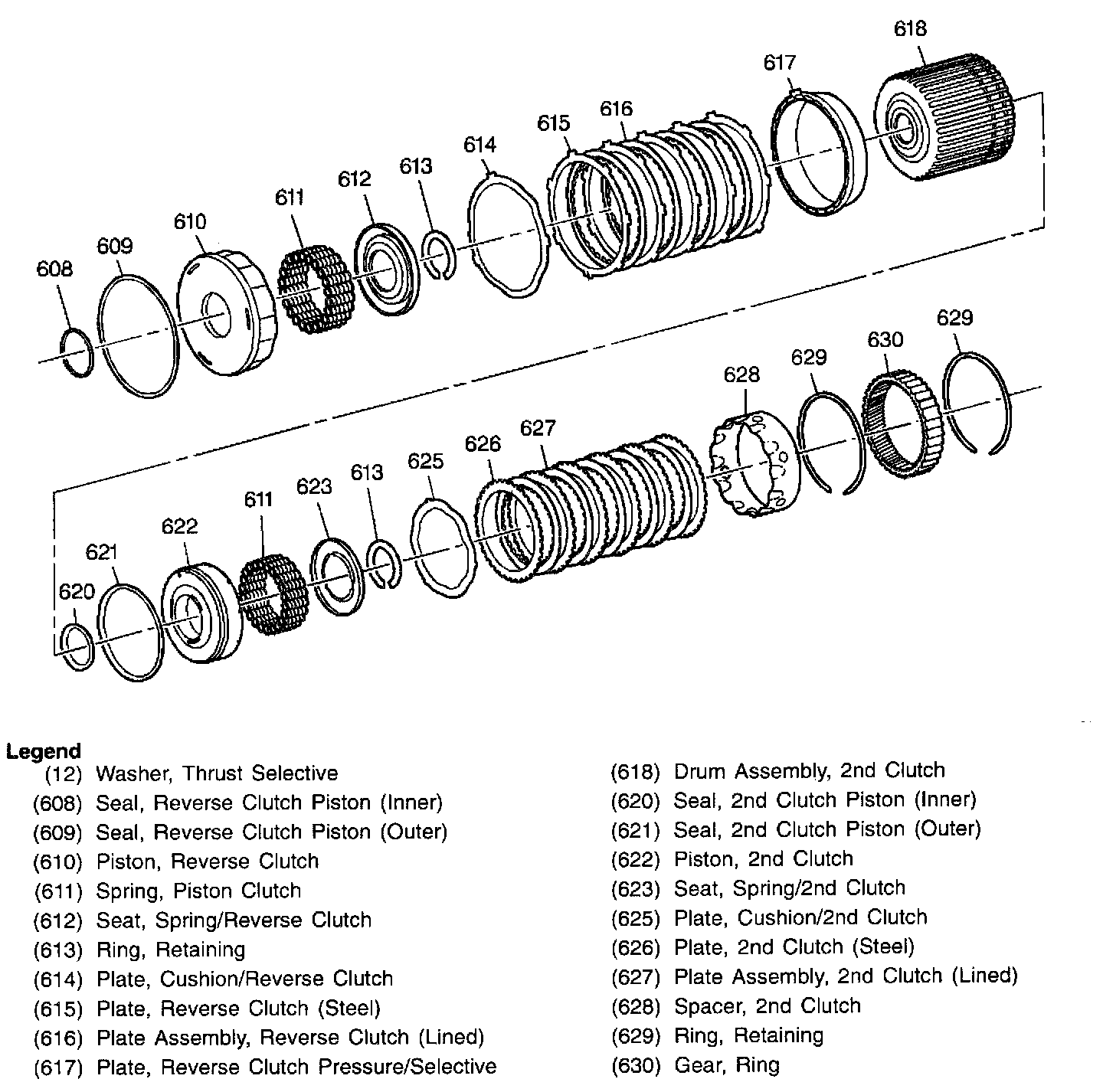

(1 of 2)

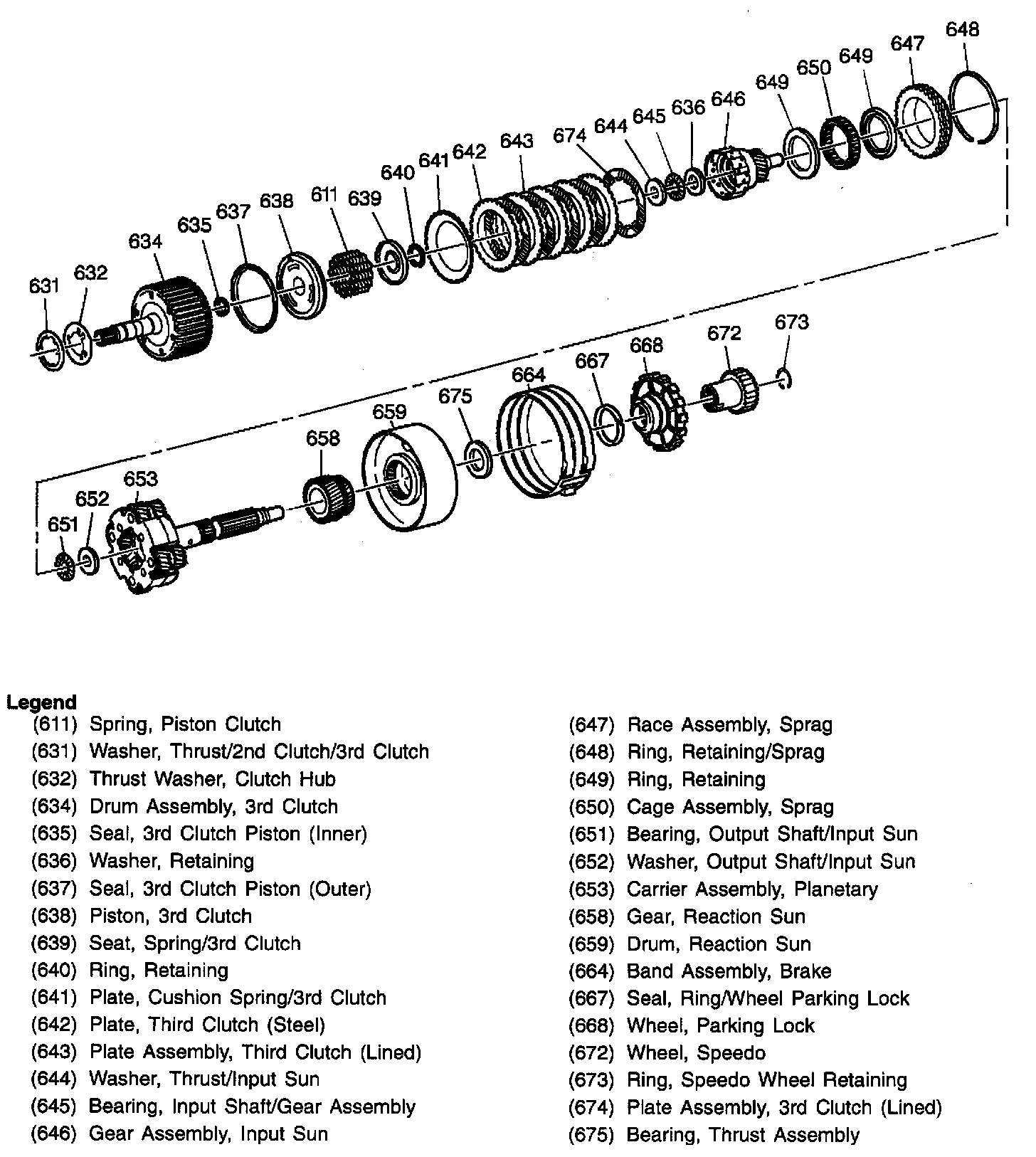

(2 of 2)
