Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Diagrams >> Radio, Rear License Lamps And Headlamp Switch

Radio, Rear License Lamps And Headlamp Switch

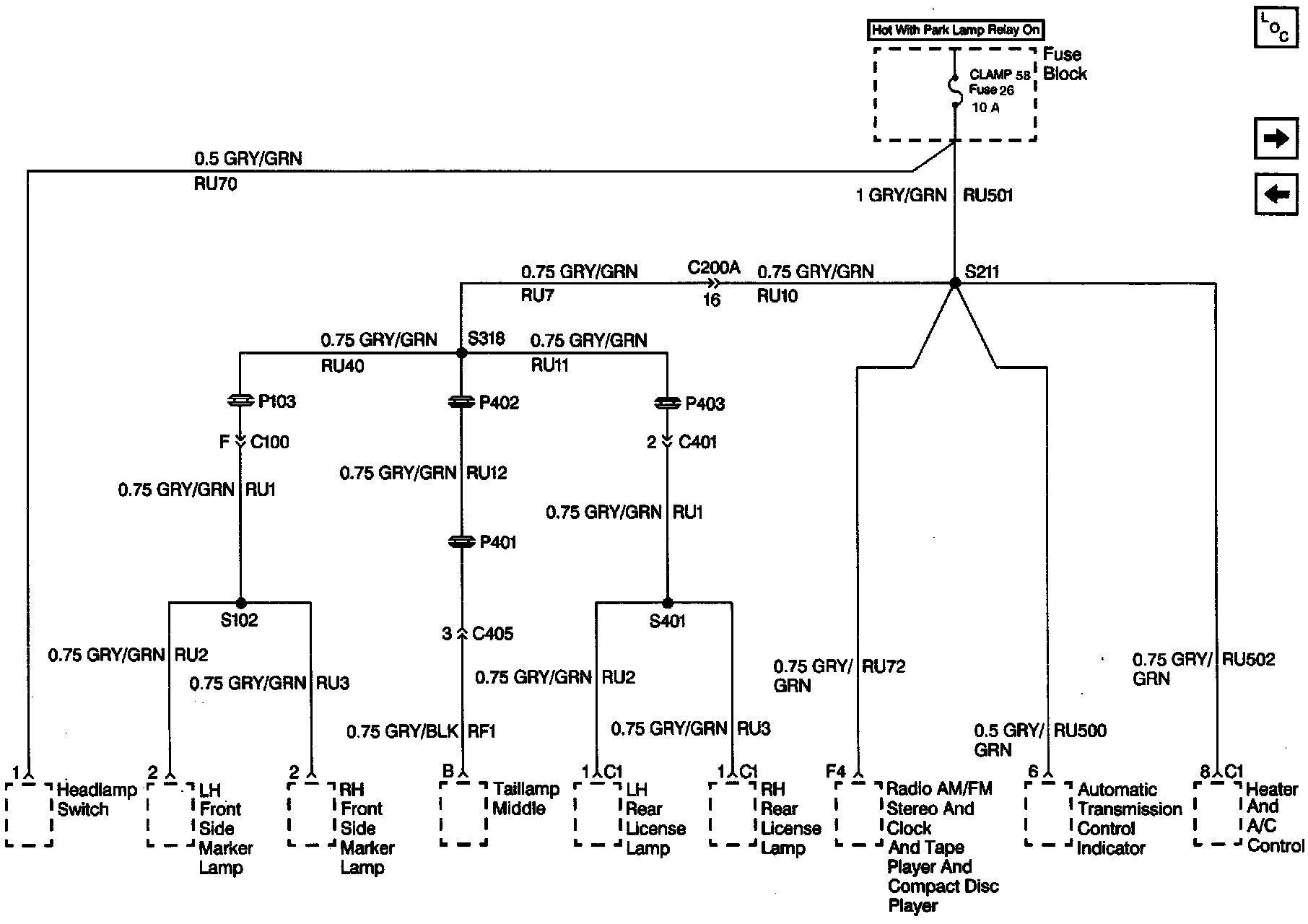

Fuse Block Details Schematics: Radio, Rear License Lamps And Headlamp Switch:
