ECM Housing, ELEC Cooling Fan & Secondary Air Injection Pump
ECM Housing, ELEC Cooling Fan & Secondary Air Injection Pump

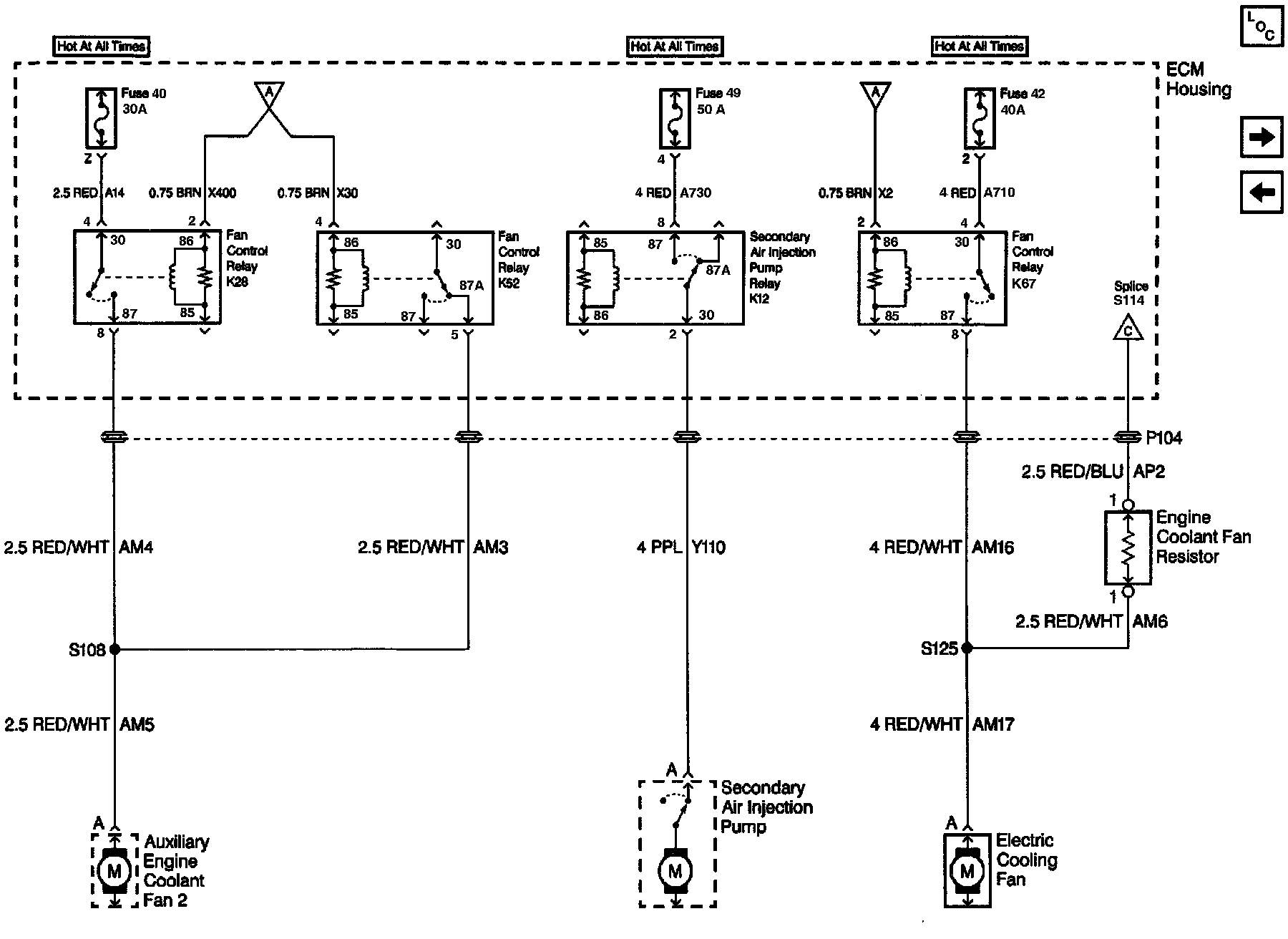

Fuse Block Details Schematics: ECM Housing, Electric Cooling Fan And Secondary Air Injection Pump:
