Cruise Control, Heater Relays, Instrument Cluster & Headlamp SW
Cruise Control, Heater Relays, Instrument Cluster & Headlamp SW

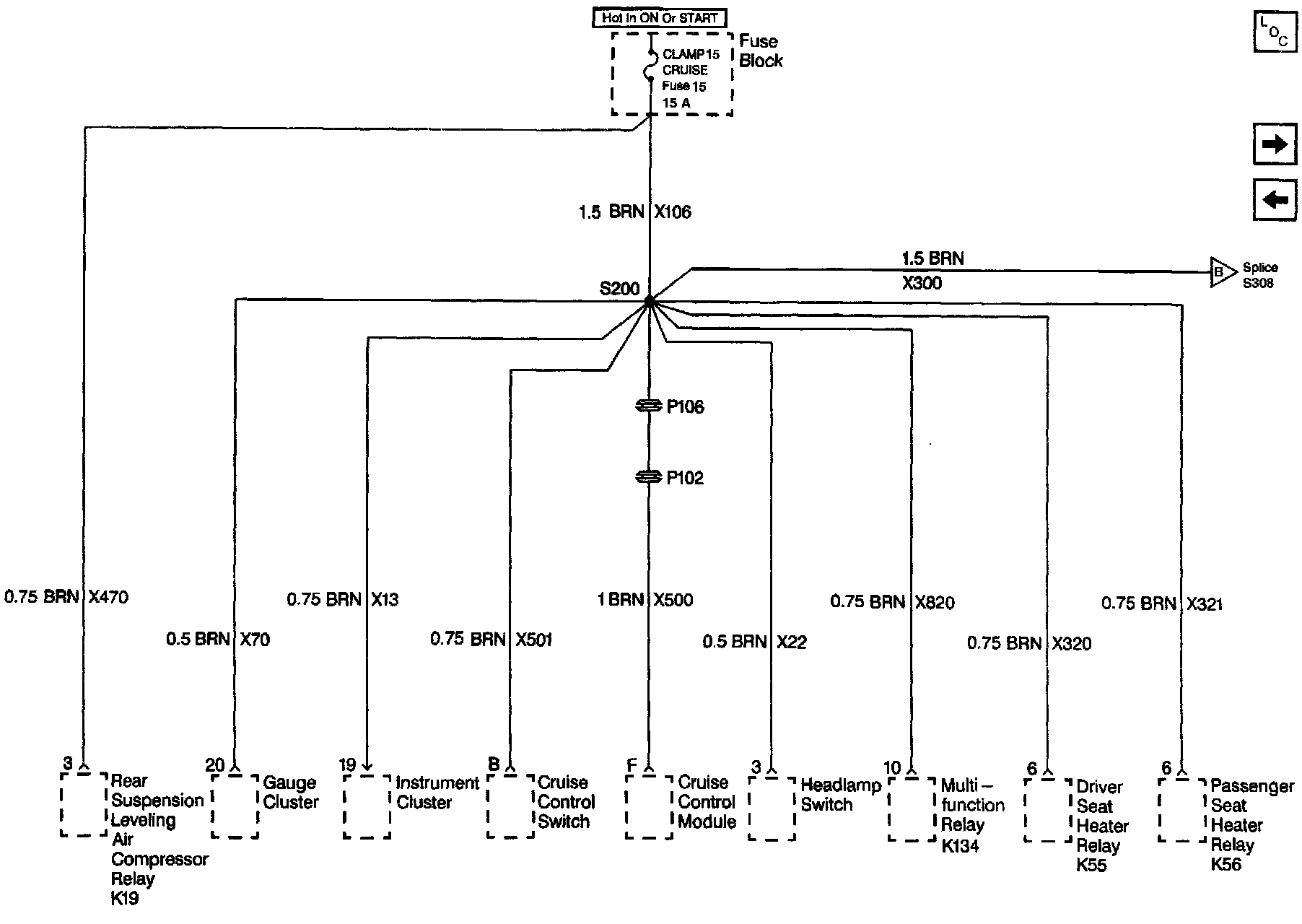

Fuse Block Details Schematics: Cruise Control, Heater Relays, Instrument Cluster And Headlamp Switch:
