Fuel Pump And Rear Exterior Lamps

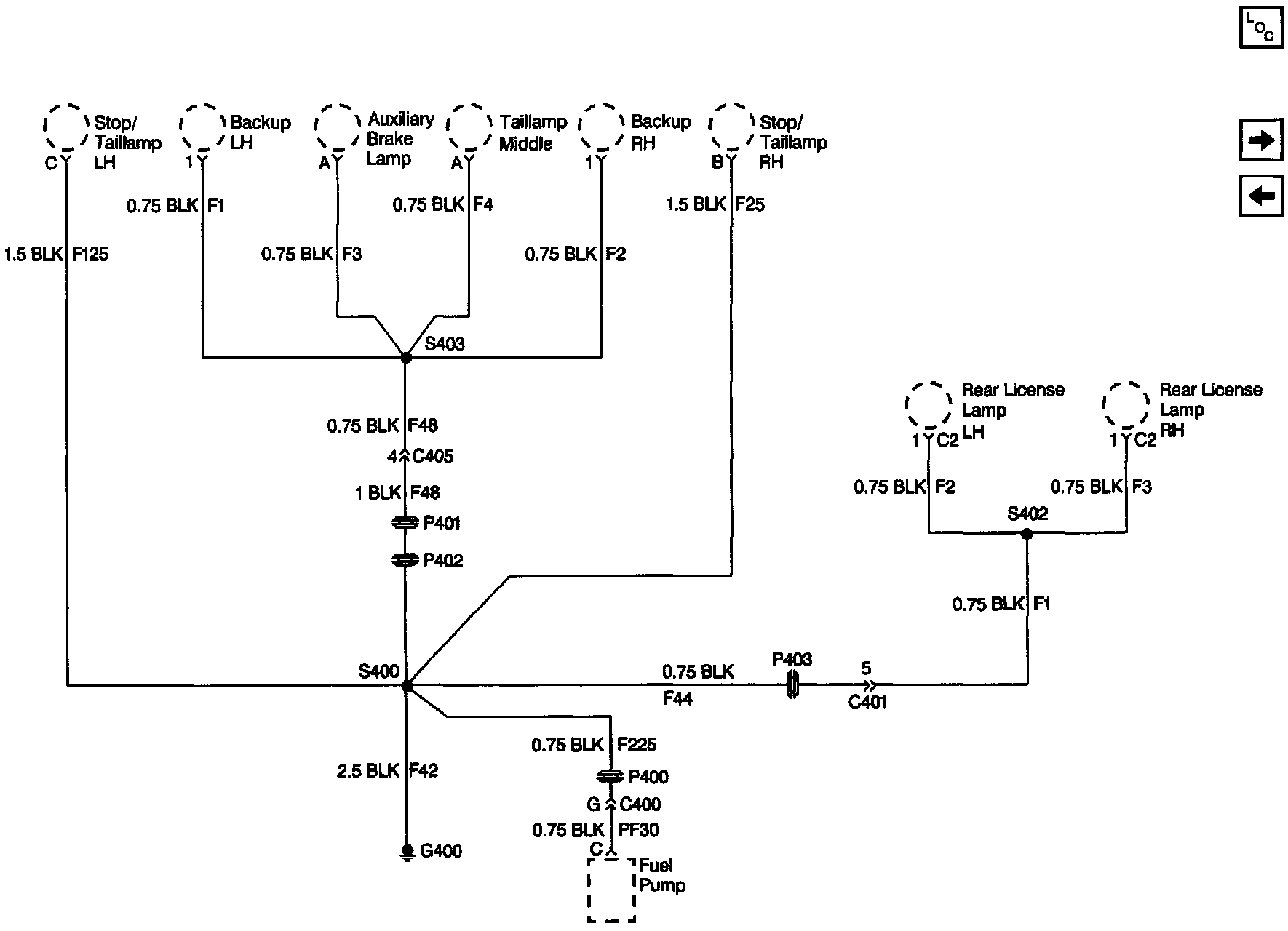

Ground Distribution Schematics: Fuel Pump And Rear Exterior Lamps:
