Door Lock SW, Cigarette Lighter & LH Outside Rear View Mirror
Door Lock SW, Cigarette Lighter & LH Outside Rear View Mirror

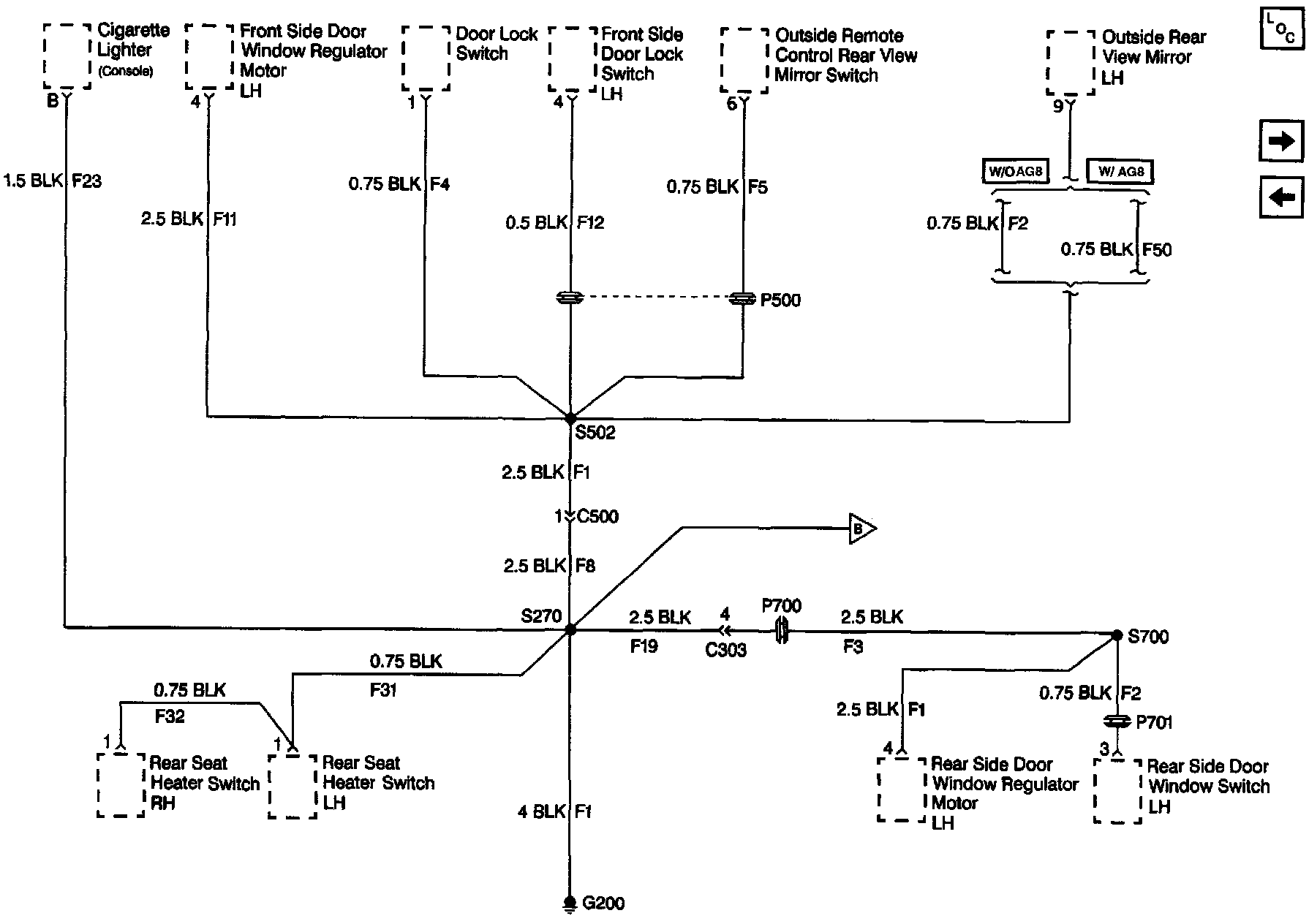

Ground Distribution Schematics: Door Lock Switch, Cigarette Lighter And LH Outside Rear View Mirror:
