Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Radio/Audio System Schematics >> Radio Antenna Amplifier & Steering Wheel Radio Control SW

Radio Antenna Amplifier & Steering Wheel Radio Control SW

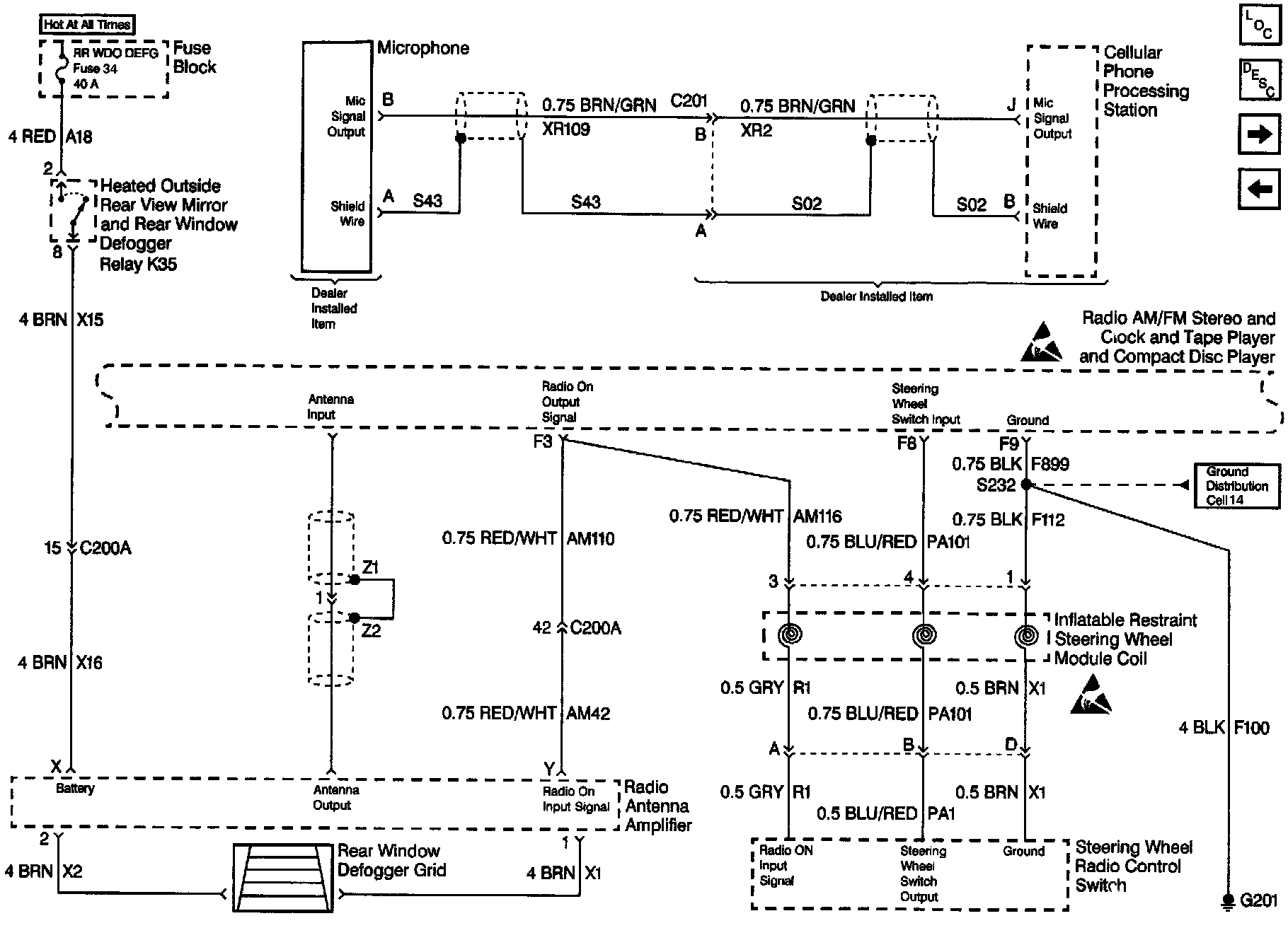

Radio/Audio System Schematics: Radio Antenna Amplifier And Steering Wheel Radio Control Switch (Both Systems):
