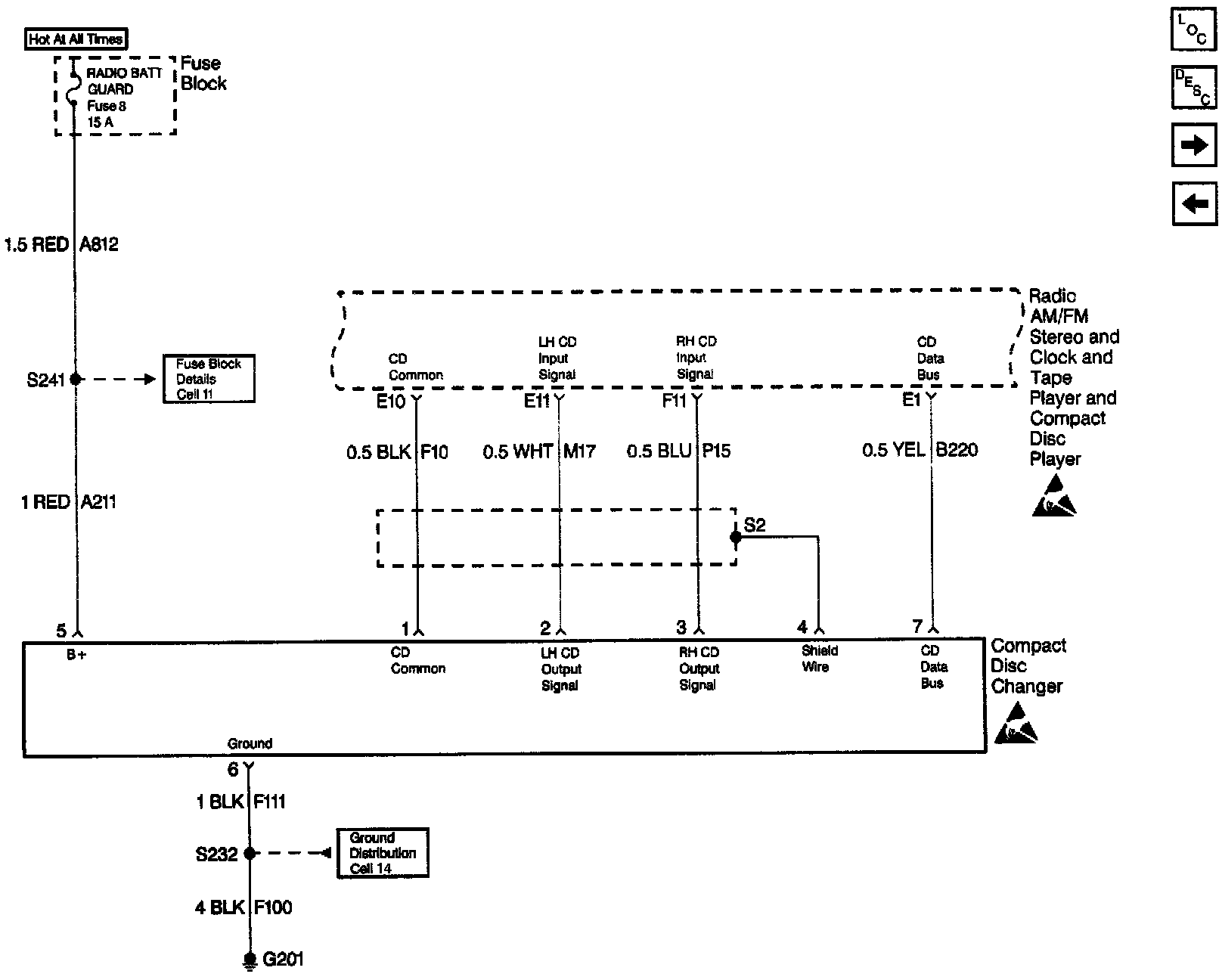

Radio And Compact Disc Changer (Base System)

Radio/Audio System Schematics: Radio And Compact Disc Changer (Base System):
