PWR And GND For Radio And Cellular Telephone (Bose (R) System)
PWR And GND For Radio And Cellular Telephone (Bose (R) System)

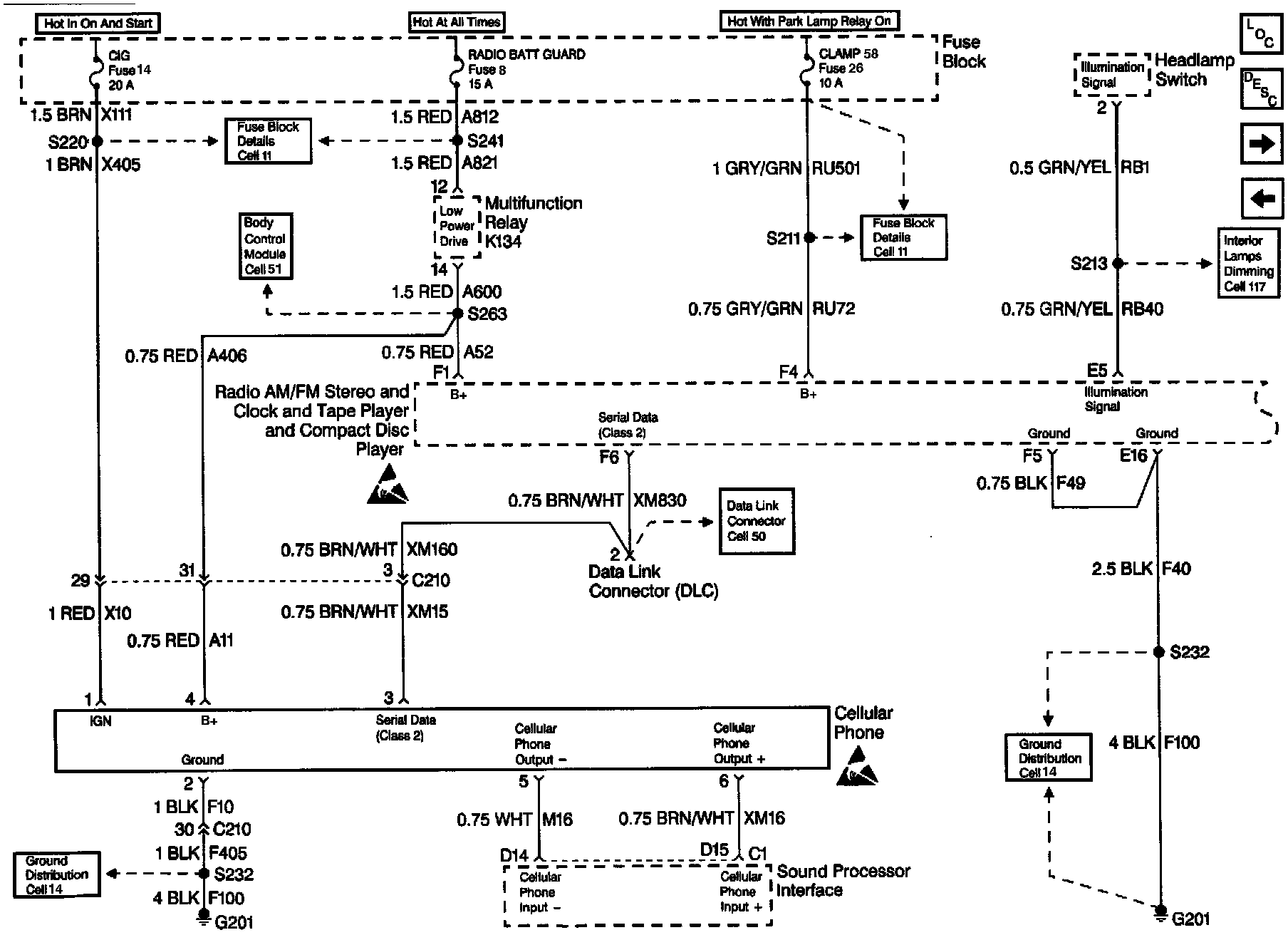

Radio/Audio System Schematics: PWR And GND For Radio And Cellular Telephone (Bose (R) System):
