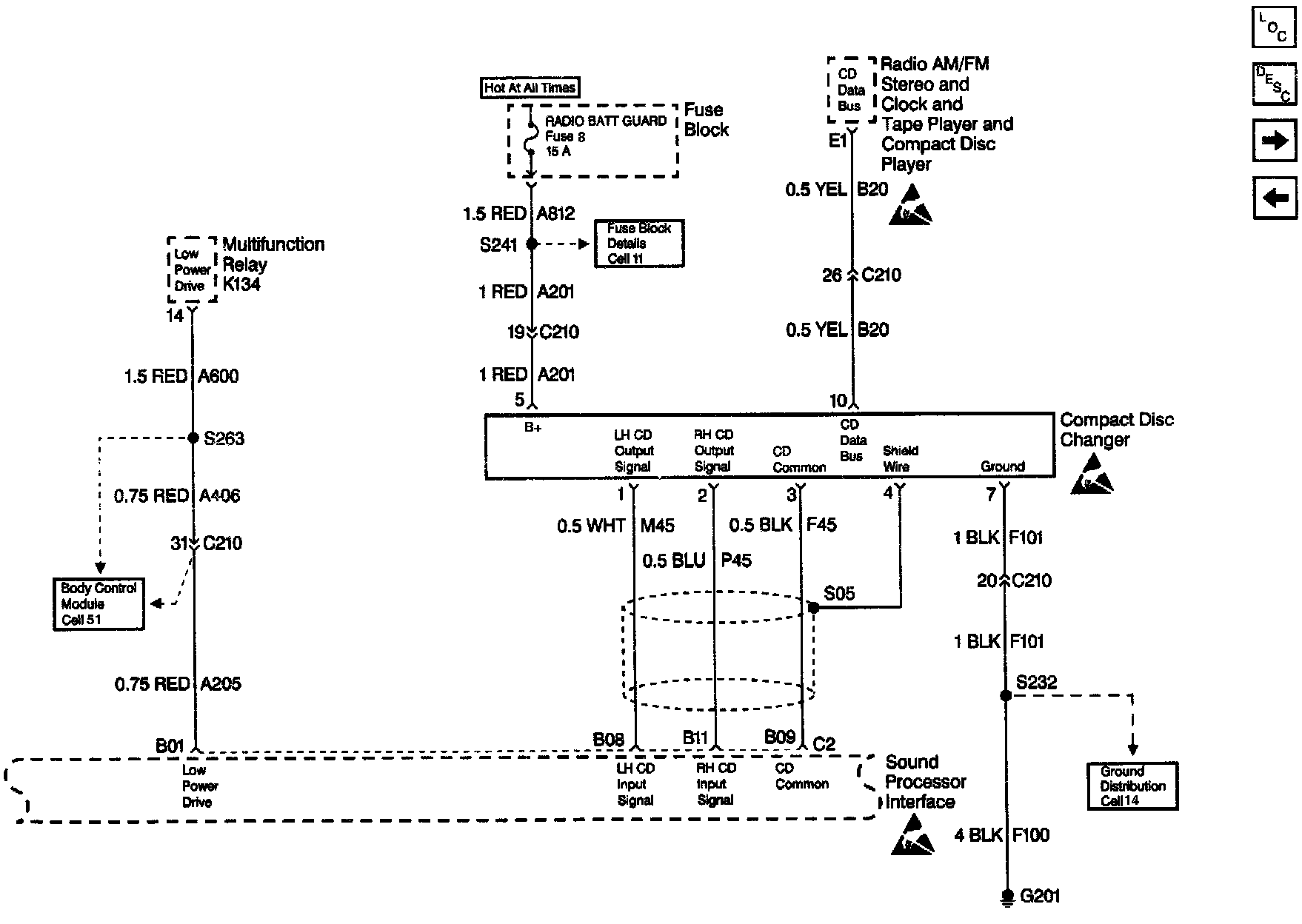

CD Changer And Sound Processor Interface (Bose (R) System)

Radio/Audio System Schematics: CD Changer And Sound Processor Interface (Bose (R) System):
