Emission Controls



ENGINE CONTROLS SCHEMATICS

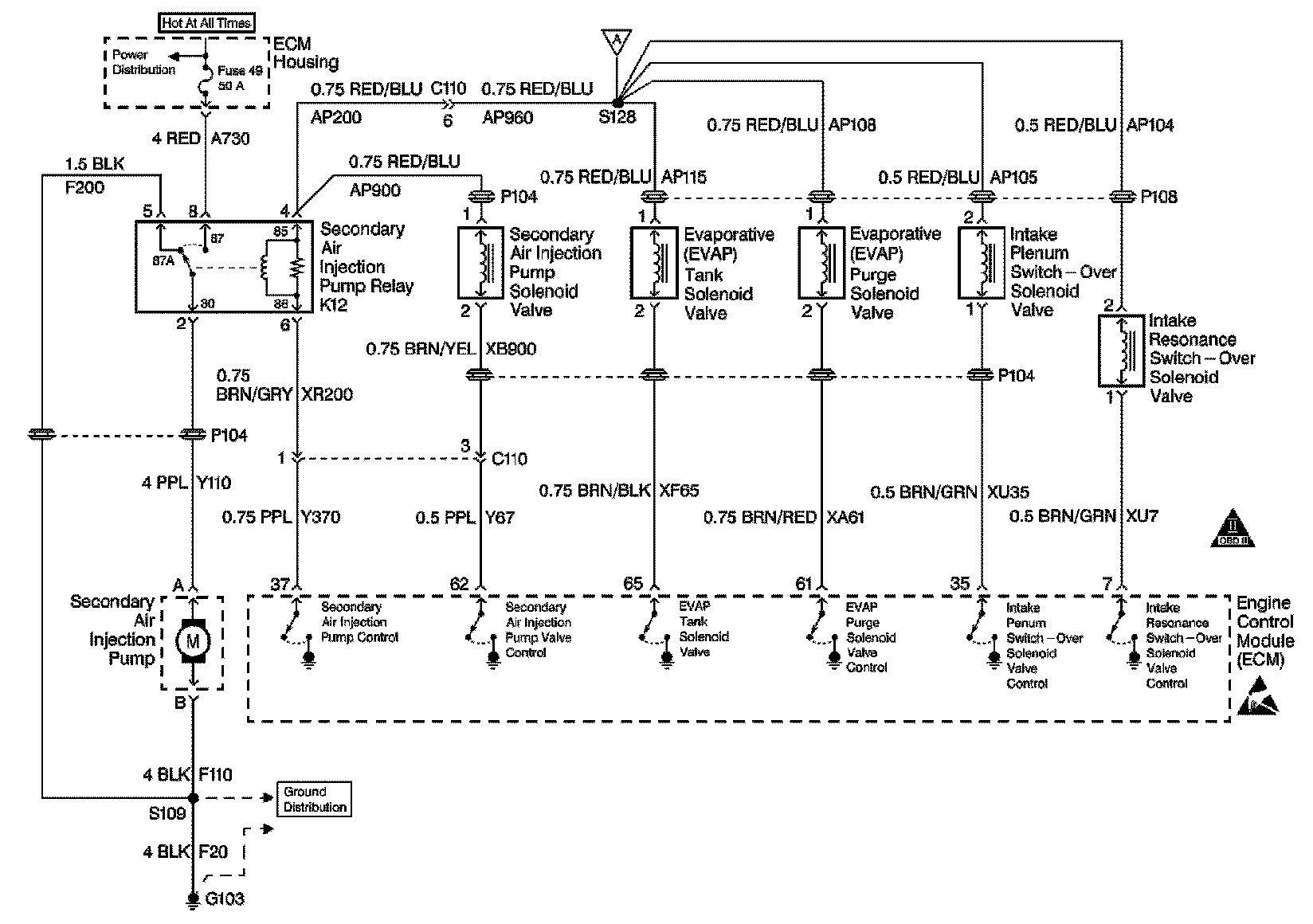

[1][2]EVAP, Air Injection and Intake Resonance Controls
