Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> EBTCM and Theft Deterrent Module

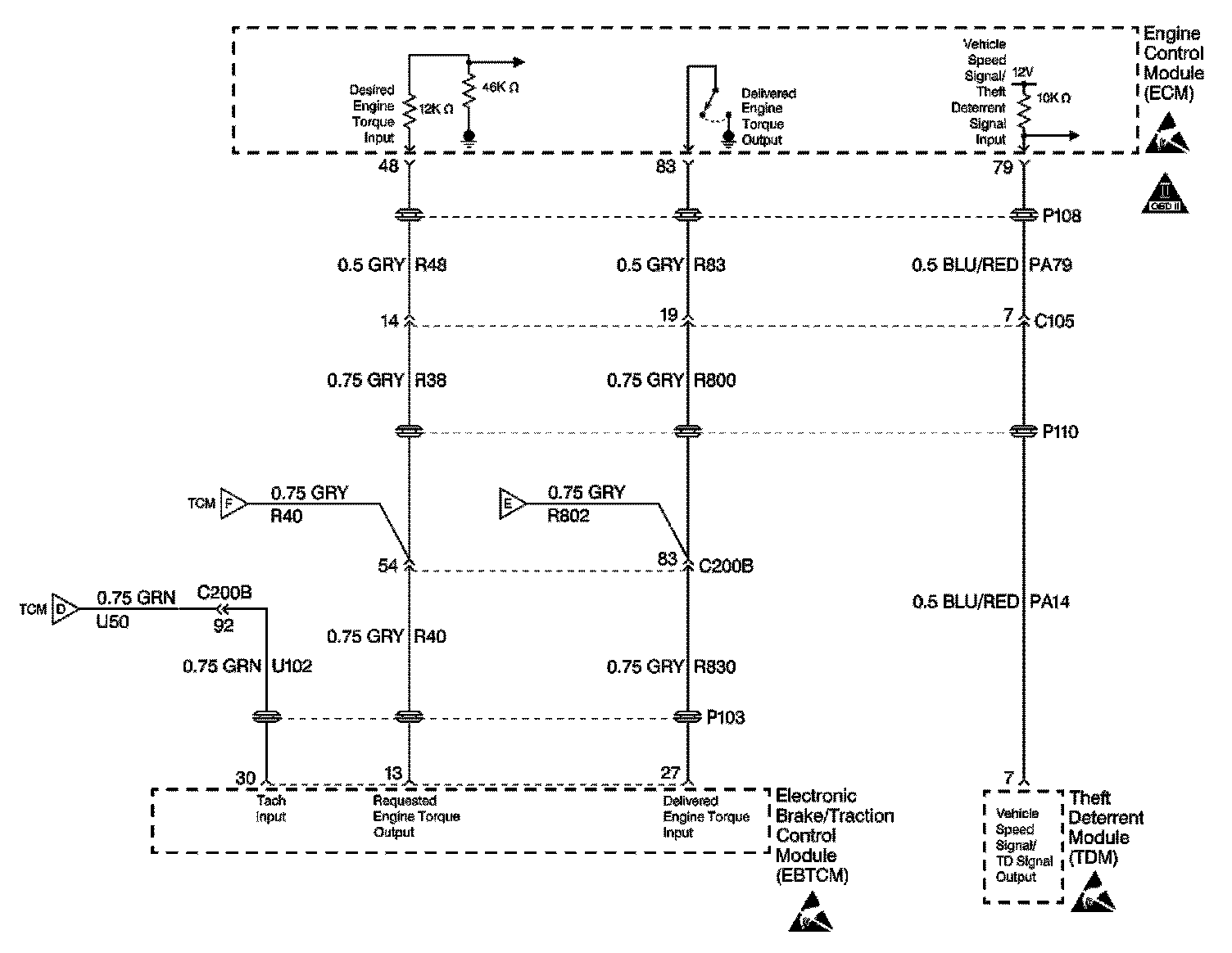

EBTCM and Theft Deterrent Module



ENGINE CONTROLS SCHEMATICS

EBTCM and Theft Deterrent Module
