ALC Sensor, Cruise Control Module, EBTCM & Heater & A/C Control
ALC Sensor, Cruise Control Module, EBTCM & Heater & A/C Control

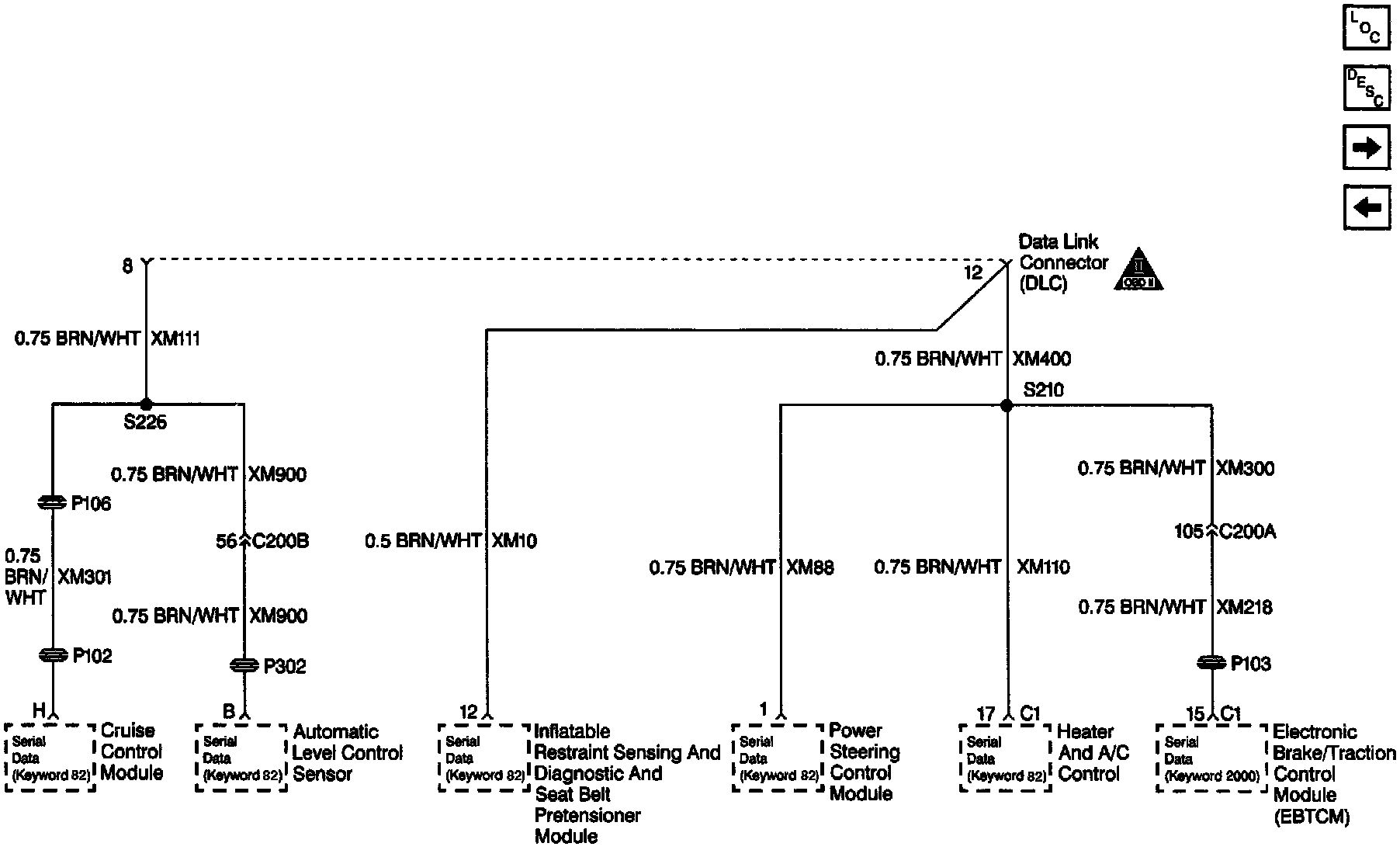

Data Link Connector Schematics: ALC Sensor, Cruise Control Module, EBTCM And Heater And A/C Control:
