Low Power Drive Output And Door Lock Relay
Low Power Drive Output And Door Lock Relay

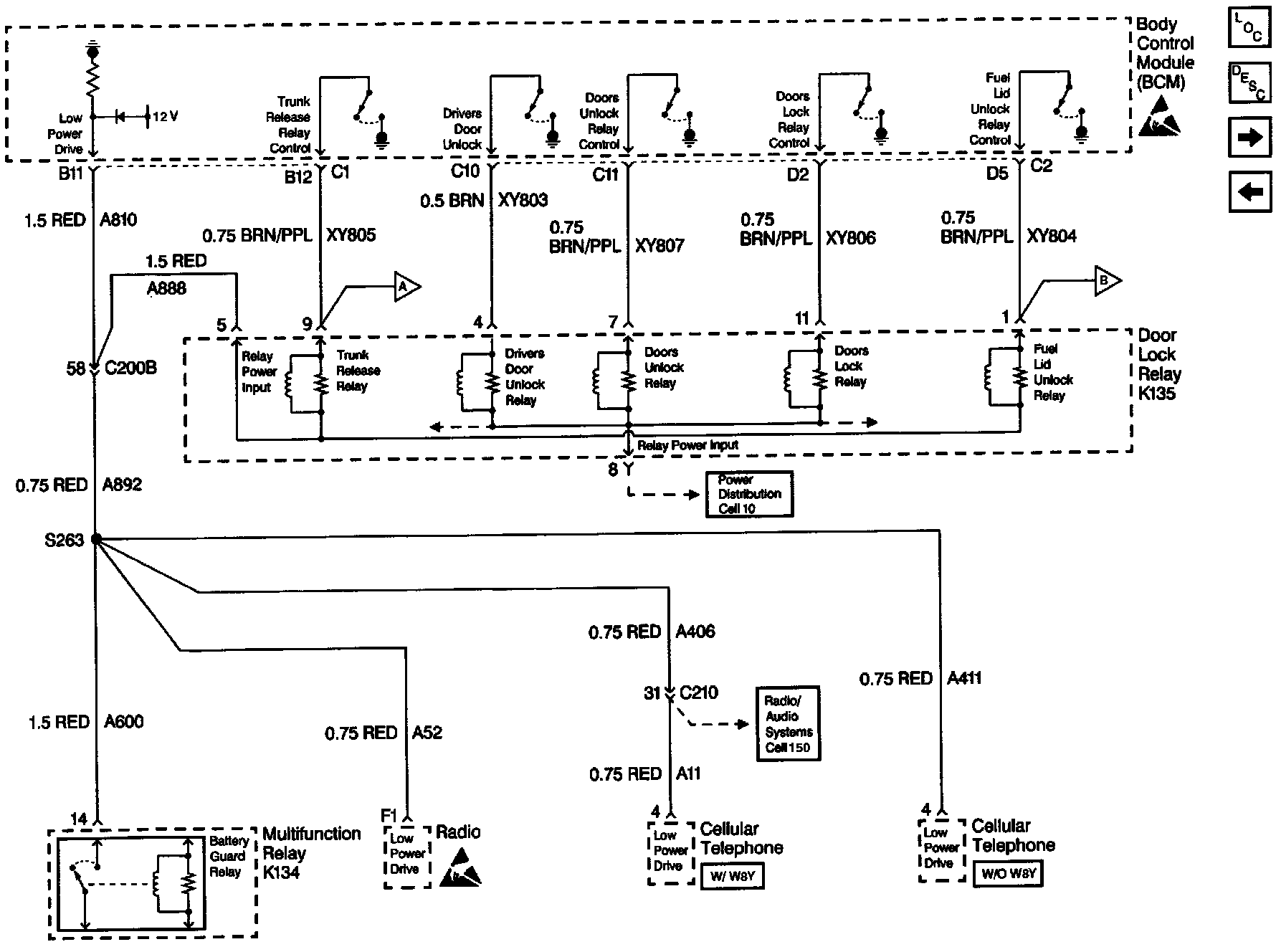

Body Control Module Schematics: Low Power Drive Output And Door Lock Relay:
