Interior Lamps, Fast Wiper and Brake SW Signal Inputs
Interior Lamps, Fast Wiper and Brake SW Signal Inputs

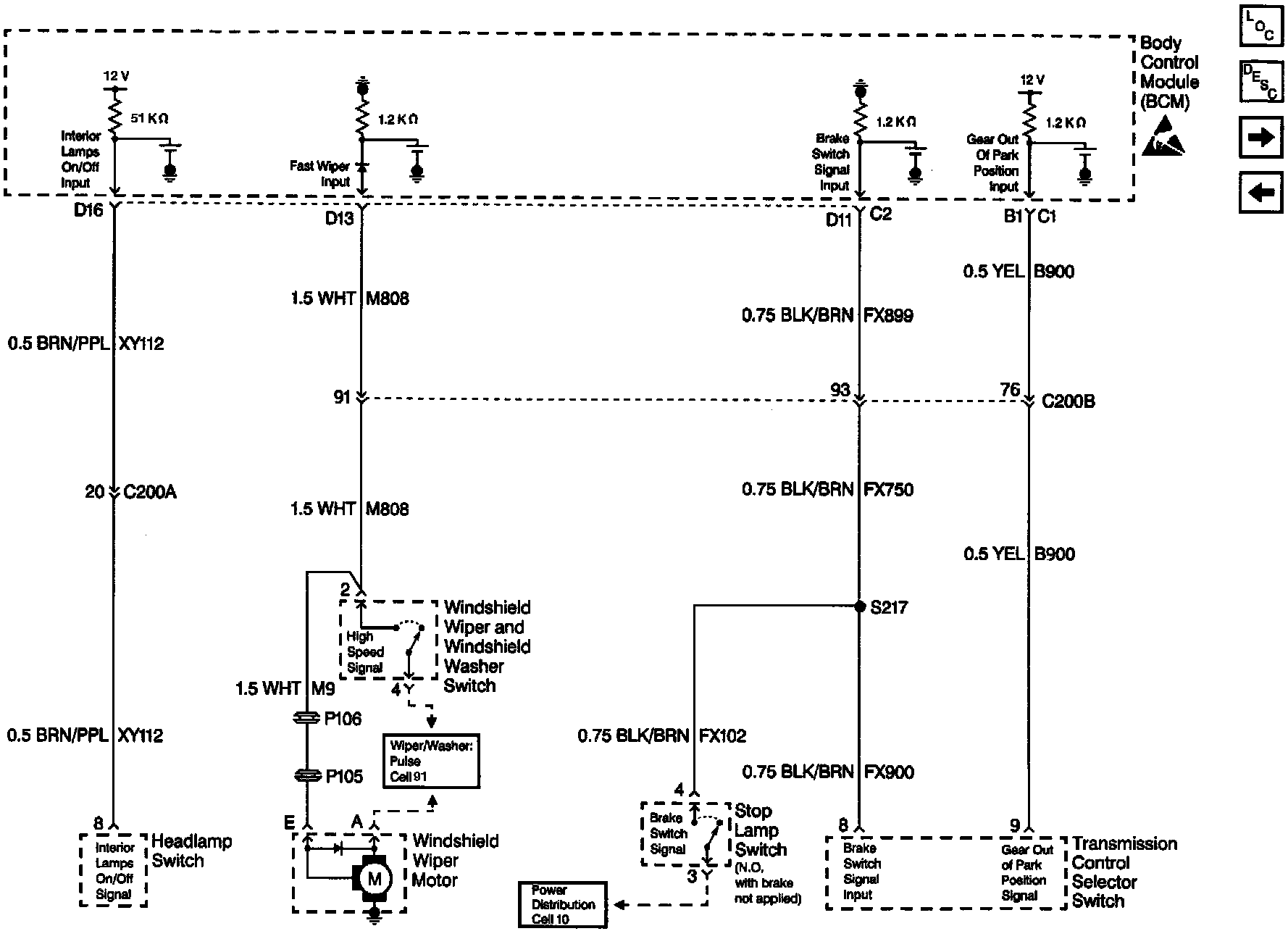

Body Control Module Schematics: Interior Lamps, Fast Wiper, Brake And Gear Switch Inputs:
